+32

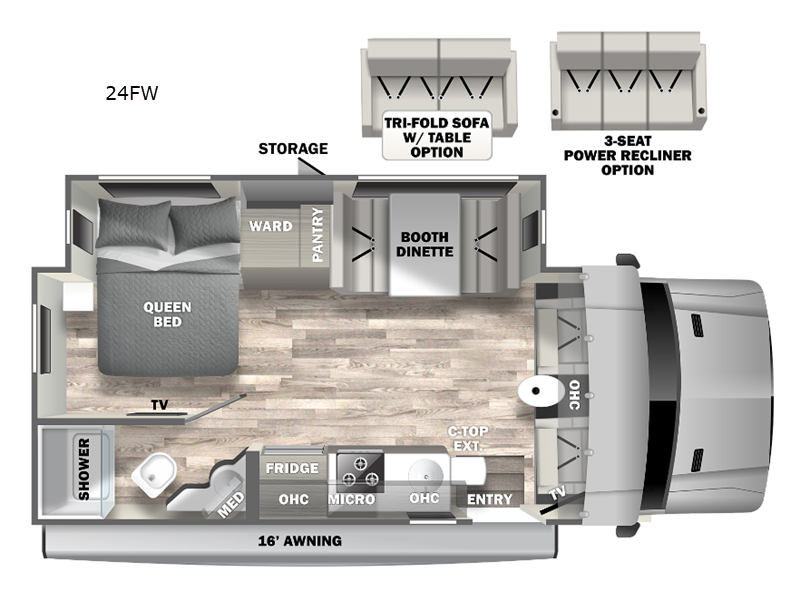

24FW Floorplan
Specifications
| Sleeps | 3 | Slides | 1 |
| Length | 24 ft 7 in | Ext Width | 7 ft 10 in |
| Ext Height | 11 ft 5 in | Exterior Color | Granite |
| Hitch Weight | 5000 lbs | GVWR | 11030 lbs |
| Fresh Water Capacity | 35 gals | Grey Water Capacity | 32 gals |
| Black Water Capacity | 32 gals | Tire Size | 16" |
| Furnace BTU | 20000 btu | Fuel Type | Diesel |
| Engine | 3.0L V6 Turbo Diesel | Chassis | Mercedes Benz Sprinter |
| Horsepower | 188 hp | Fuel Capacity | 26 gals |
| Wheelbase | 170 in | Available Beds | Queen |
| Torque | 325 ft-lb | Refrigerator Type | Double Door |
| Refrigerator Size | 6 cu ft | Convection Cooking | Yes |
| Cooktop Burners | 3 | Number of Awnings | 1 |
| Axle Weight Front | 4410 lbs | Axle Weight Rear | 7720 lbs |
| LP Tank Capacity | 20.3 gals | Water Heater Type | Truma Aqua Go Comfort On Demand |
| AC BTU | 15000 btu | TV Info | LR 32" LED TV, BR 32" LED Smart TV |
| Awning Info | 16' Electric with LED Lights | Gross Combined Weight | 15250 lbs |
| Shower Type | Standard | Electrical Service | 30 amp |
| VIN | W1X8E33Y1MN149338 |
Description
Dynamax isata 3 Class C diesel motorhome 24FW highlights:
- Queen Bed
- Booth Dinette
- Rear Corner Bathroom
- Exterior Speakers
Embark on Endless Adventures with the Used 2022 Isata 3 24FW!
The 2022 Isata 3 24FW by Dynamax is your passport to unparalleled road trips and luxurious camping experiences! This Class C motorhome is the perfect blend of style, comfort, and performance, making it ideal for couples and families who crave the freedom to explore. With its sleek design, efficient size, and thoughtful amenities, the Isata 3 24FW is a dream machine for any traveler.
Whether you're hitting the open highway or setting up camp under the stars, this lightly used motorhome offers everything you need to travel in style without the new RV price tag.
Features That Set the 2022 Isata 3 24FW Apart
-
Mercedes-Benz Sprinter Chassis: Built on the reliable and fuel-efficient Mercedes-Benz Sprinter chassis, this RV combines superior handling with exceptional performance. The powerful turbo diesel engine ensures smooth rides on all terrains.
-
Spacious Full-Wall Slide-Out: The 24FW boasts a full-wall slide-out that expands the living space, giving you plenty of room to relax, cook, and entertain.
-
Gourmet Galley Kitchen: Cook with ease in the fully equipped kitchen featuring a two-burner induction cooktop, a convection microwave, a stainless steel sink, and a residential-style refrigerator. Plenty of cabinets provide ample storage for all your kitchen essentials.
-
Cozy Sleeping Arrangements: The rear queen bed with plush bedding ensures restful nights, while the convertible dinette and cab-over bunk provide additional sleeping options for guests or family.
-
Luxurious Bathroom: Enjoy the comforts of home with a private bathroom that includes a spacious shower, a vanity with a sink, and a porcelain toilet.
-
Entertainment Galore: Stay entertained with the large LED TV, premium sound system, and available satellite prep. Perfect for movie nights or catching the game wherever you are.
-
Exterior Convenience: An electric awning with LED lighting and exterior speakers make outdoor living fun and convenient. The exterior storage compartments provide plenty of space for your gear.
-
Efficient Climate Control: Stay comfortable year-round with the powerful HVAC system, ensuring optimal temperature no matter the weather.
Why Buy from Capital RV?
-
Trusted Name in RV Sales: With years of experience, Capital RV is the go-to destination for quality RVs and exceptional customer service.
-
Thoroughly Inspected Inventory: Our certified technicians perform comprehensive inspections on every pre-owned RV, ensuring it’s in top-notch condition and road-ready.
-
Competitive Pricing: Save big on your dream RV with our fair, upfront pricing. The Used 2022 Isata 3 24FW offers unbeatable value compared to buying new!
-
Hassle-Free Financing Options: We make RV ownership accessible with flexible financing plans tailored to your budget.
-
Unparalleled Customer Support: From the moment you step onto our lot, our friendly and knowledgeable team is here to assist you every step of the way—from purchase to long after you hit the road.
-
Wide Selection: Whether you’re looking for a compact motorhome like the Isata 3 or a larger luxury RV, our extensive inventory has something for everyone.
Don’t Wait—Start Your Adventure Today!
The Used 2022 Isata 3 24FW is the perfect combination of luxury, performance, and convenience. With its sleek design, spacious interior, and premium features, it’s ready to make your travel dreams a reality.
Visit Capital RV today to see this incredible motorhome in person. Let our expert team help you find the RV that’s perfect for your lifestyle and budget. The road to your next adventure starts here—get ready to explore like never before with Capital RV!
Features
Standard Features (2022)
Chassis
- Mercedes-Benz® Sprinter Chassis
- 3.0L V6 Turbo Diesel Engine (188hp and 325 ft.-lbs. of Torque)
- 7G-TRONIC PLUS Automatic Transmission with Overdrive
- 26.4-Gallon Fuel Tank
- 5.75-Gallon Diesel Exhaust Fluid Tank
- Lane Keep Assist
- Adaptive Cruise Control
- Active Brake Assist
- High-Beam Assist
- Crosswind Assist
- Attention Assist
- Traffic Sign Assist
- Rescue Assist
- Electronic Stability Program (ESP)
- Wet Wiper System
- Trailer Hitch (5,000 Tow lbs.) with 7-Way Round Tow Connection
- Bilstein® Gas-Charged Rear Shock Absorbers
- Momentary Battery Booster Switch for Connecting Chassis and House Batteries
- Single 12V Chassis Battery
- 220-Amp Alternator
- LED Brake, Turn, and Backup Lights
- Aluminum Running Boards
- Front and Rear Tires: LT215/85 R16
- Single Front Wheels and Dual Rear Wheels (5.5" x 16")
- 4.18 Rear Axle Ratio
- Power, Heated Leatherette Cab Seats with Swivel Bases
- Upgraded Multifunction Steering Wheel
- Upgraded Instrument Cluster with Pixel-Matrix Display
- Quad-View Camera System (Right Side, Left Side, Hitch, and Rear HorizoViews)
- MBUX (Mercedes-Benz User Experience) 10.25” Touch Screen Infotainment System with Navigation, AM/FM, Bluetooth®, Sirius/XM® (tuner and antenna), Apple® CarPlay™/Android® Auto™ Function
- 12V and USB Accessory Ports
- Adjustable Steering Column
- Power Windows and Locks
- Power Exterior Mirrors (Auto-Heated at Low Temperatures)
- 3-Point Seat Belts
- Canadian chassis features three total seatbelts
- Front, Thorax, & Window Safety Air Bags
- Lockable Safe in Passenger Seat Base
- Deluxe, Removable Automotive Cab Carpet Mat
- Drink Holders
Construction
- 1 ½” Aluminum-Framed, Laminated Sidewalls with Block Foam Insulation
- Gel-Coat Fiberglass Walls with Azdel Backing
- Aluminum-Framed Floor
- Aluminum-Framed Roof Trusses
- Crowned, One-Piece Fiberglass Roof
- Fiberglass Rear Bumper
- Foil-Lined Ductwork Throughout
- Aerodynamic Fiberglass Front Wing Panels
- Aerodynamic Fiberglass Front Cap with Cab-Over Cabinets
- Automatic, 4-Point Hydraulic Leveling Jacks with Bluetooth Smart Phone App Control
- Dark-Tinted, Frameless Windows
- Seamless Rotocast Storage Compartments with LED Lighting
- Locking Aluminum Exterior Storage Doors with Compression Latches
- Electric Slide System
Exterior
- Custom Full Body Paint Package
- Premium Cut and Buffed Paint Finish
- Front-End Diamond Shield® Paint Protection
- Armless Patio Awning with LED Lighting and Motion-Activated Retraction
- Slideout Topper(s)
- LED Patio Light
- Entry Door with Dark-Tinted, Frameless Window and Integrated Shade
- Lighted Acrylic Entry Grab Handle
- Power Entry Step
- Exterior TV Mount
- Exterior Speakers
- Front and Rear LED Clearance and Marker Lighting
Interior
- Premium Vinyl Flooring Throughout
- Soft-Touch Padded Vinyl Ceiling
- LED Flush-Mount Ceiling Lighting
- Sprung, Residential Style Dinette Seats with Lift Up Storage
- Coordinating Window Treatments
- Blackout Roller Shades (Steel Blind at Kitchen Window)
- Hardwood Craftsman-Style Cabinetry
- Full Extension, Soft-Closing Drawer Guides (where applicable)
- Hidden Hinges
- 32” LED TV (Living Area)
- Stereo System - AM/FM/CD/DVD with Zoned Speaker Control and Bluetooth® Smart Phone App Control
- Easy Access Battery Compartment Beneath Entry Step
- Entry with Non-Skid Rubber Step and Steel Risers
- Thermal, Reflective Front Privacy Shades
- USB Charging Ports
- Cocktail Table Between Cab Seats
- Cab Seat Booster Cushions (Set of Two)
Kitchen
- 6.0 cu. ft. 2-Way Refrigerator (Double-Door)
- Gas Range with Glass Cover and Overhead Range Cover
- Convection Microwave Oven
- Solid Surface Countertops with LED Edge Lighting and Backsplash
- Solid Surface Countertop Extension
- Stainless Steel Sink with Solid Surface Cover
- Residential Stainless Steel Spring Gooseneck Faucet
- Under-Cabinet Lighting
- MaxxAir® Power Vent with Built-In Rain Cover
Bedroom
- Queen Bed (60” x 75”) with Gel-Infused Memory Foam Mattress
- Under-Bed Storage (24FW)
- Deluxe Padded Headboard (24RW)
- Designer Bedding Package
- 32” LED Smart TV
- Cedar-Lined Wardrobe
- LED Reading Lights
- USB Charging Ports
- Privacy Partition
Bathroom
- Shower with Light-Weight, Soft-Sided Shower Door and Skylight
- Oxygenics Body Spa® RV Shower Head
- Stainless Steel Sink with Residential Faucet
- Composite Foot-Flush Toilet with Hand Sprayer
- MaxxAir® Power Vent with Built-In Rain Cover
Utilities
- Dual 12V Group 27 AGM Deep-Cycle, Maintenance-Free Auxiliary Batteries (US Chassis)
- Low Temp Lithium (200aH) in Place of AGM Batteries (Canadian Chassis)
- Firefly Multiplex® Wiring with Touch Screen Command Center, Switch Panels, and Bluetooth® Smart Phone App Control
- Battery Disconnect at Entry
- 30-Amp Service
- 2,000W Pure Sine Wave Inverter (3,300 Peak Watts)
- 3.6kW Onan® LP Generator with Auto Transfer Switch (Mounted Isolator Pads)
- Automatic Generator Start
- Solar Panels - Two 100 watt with 30 Amp controller
- Ducted, Low-Profile 15,000-BTU Air Conditioner with Heat Pump
- 20,000-BTU Furnace with Electronic Ignition
- 60,000-BTU Truma® Aqua Go Comfort™ On-Demand Water Heater (LP)
- 20.3-Gallon LP Tank (WC)
- LP Quick Connect
- Water Filtration System
- Exterior Shower in Service Bay
- Exterior GFCI Receptacle
- Winegard® AIR 360+ with Gateway Router (WiFi Extender, 4G LTE, Omnidirectional VHF/UHF OTA, FM, SIM Card Port)
- 4x4 HDMI Matrix
- Cable TV/Satellite Hookup
- 60-Amp Progressive Dynamics Converter with Charge Wizard® System
- Black Tank Flush
- TruTank® Level Monitoring (Measures in 5% Increments)
- 12V Heat Pads, Gray, and Black Tanks
- Water Management Valve for Fill and Winterizing
- Upgraded 12V On-Demand Water Pump (4 gallons per minute)
- Carbon-Monoxide, LP, and Smoke Detectors
- Fire Extinguisher
Options
- Low-Temp Lithium (200aH) in Place of AGM Batteries (Standard on Canadian Chassis)
- Extended Fiberglass Front Cap with 54” x 80” Cab-Over Bunk Mattress and Privacy Curtain (+170 lbs.)
- Dual, Power Reclining Theater Seats in Place of Dinette (+40 lbs.)
- Tri-fold Sofa with Pedestal Table in Place of Dinette (+23 lbs.)
- Winegard® In-Motion T4 Satellite (Dish® SD-HD, DirecTV® SD, Bell TV® SD-HD) (+10 lbs.)
- 3.2kW Onan® Diesel Generator in Place of Standard 3.6kW LP (+27 lbs.)
- Tire Pressure Monitoring System with Metal Valve Extensions (+5 lbs.)
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to Covid19 supply chain issues, some features and options shown may be temporarily substituted or removed.
