Floorplan - 2017 Dynamax DX3 37BH
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
+31- SALE PRICE: $182,100
- List: $242,150
- You Save: $60,050
-
Sleeps 6
-
2 Slides
-
BunkhouseRear Bedroom
-
39ft Long

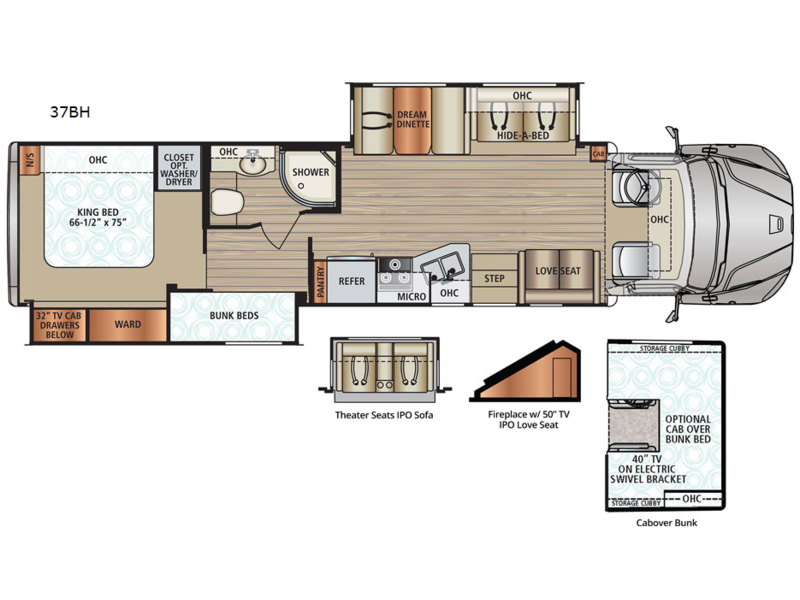

37BH Floorplan
Specifications
| Sleeps | 6 | Slides | 2 |
| Length | 39 ft 2 in | Ext Width | 8 ft 5 in |
| Ext Height | 12 ft 9 in | Hitch Weight | 20000 lbs |
| GVWR | 33000 lbs | Fresh Water Capacity | 96.5 gals |
| Grey Water Capacity | 52 gals | Black Water Capacity | 52 gals |
| Tire Size | 275/80R22.5 | Fuel Type | Diesel |
| Miles | 43000 | Engine | Cummins ISL Turbo 8.9L |
| Chassis | Freightliner M2 | Horsepower | 350 hp |
| Fuel Capacity | 100 gals | Wheelbase | 268 in |
| Number Of Bunks | 2 | Available Beds | King |
| Torque | 1000 ft-lb | Refrigerator Type | Double Door |
| Refrigerator Size | 16 cu ft | Cooktop Burners | 3 |
| Number of Awnings | 1 | Axle Weight Front | 12000 lbs |
| Axle Weight Rear | 21000 lbs | LP Tank Capacity | 20.3 |
| AC BTU | 30000 btu | TV Info | LR 40" LED TV, BR 32" LED TV |
| Awning Info | 13' 6" | Gross Combined Weight | 54000 lbs |
| Shower Type | Radius | Electrical Service | 50 amp |
| VIN | 1FVACXCY6HHJC3482 |
Description
Dynamax DX3 motor home class C - diesel 37BH highlights:
- Bunk Beds
- Love Seat
- Plenty of Storage
Would you like for your kids to have their own space while you are away from home? Well, the DX3 37BH motor home by Dynamax features a set of bunk beds which your kids are sure to love! You will also enjoy the double slides, a rear bedroom, and plenty of space for your whole family to spread out! You have DVD players in each of the bunks and a 40" TV in the living area for those rainy days and cooler nights. In the bedroom, you will also find a 32" TV for entertainment as you snuggle up in the king bed. There is a nightstand on one side of the bed and a closet on the other side, or you can choose an optional washer and dryer in place of the closet.
Dynamax keeps three things in mind when building these DX3 class C motorhomes, construction, power, and luxury. The construction features aluminum frames and gel-coat fiberglass walls. The power behind the vehicle is a mighty engine and automatic transmission that result in amazing torque and towing capacity. Some of the luxurious features are backup/side cameras that will make parking a breeze. There are also USB charging ports, convection microwave ovens, and day/night roller shades. So whether you are looking at the construction of a vehicle, the power behind a vehicle or the luxury of the interior be sure to check out these models today to examine all three in action.
Features
- Freightliner ® M2 106 Chassis (33,000-lbs. GVWR/54,000-lbs. GCWR)
- Cummins® 8.9L ISL Turbo Diesel Engine (350hp/1,000 lb.-ft. of Torque)
- Allison® 3200 TRV Six-Speed Automatic Transmission
- 100-Gallon Fuel Capacity(Twin 50-Gallon Aluminum Fuel Tanks)
- 6-Gallon Diesel Exhaust Fluid Tank
- Trailer Hitch (20,000 Tow lbs.) with 7-Way Round Tow Connection
- Brake Controller
- Dual-Stage C-Brake byJacobs® with High/Off/Low Braking Dash Switch
- Locking Differential
- Airliner ® 21,000-lb. rear suspension
- Manual Air Dump
- 12,000-lb. Front Axle
- 23,000-lb. Quiet Ride Rear Axle
- 275-Amp Alternator
- Air Brakes with 4-Wheel ABS
- Bilstein® Gas-Charged front shock absorbers
- Equiflo™ Inboard fuel system (DualSupply– Dual Return)
- Fuel Filter/water separator with Primer Pump
- Steel-Reinforced, Aluminum Cab
- Chrome Grille and Air Intake Grille
- Front and Rear Tires: Michelin® XZE2 275/80R22.5 (14 Ply Radials)
- Single Front Wheels: Alcoa® Aluminum (22.5”x 8.25”) *Outside Rims are polished
- Dual Rear Wheels: Alcoa® Aluminum (22.5”x 8.25”) *Outside Rims are polished
- Valve Extensions
- Quick Disconnect Fitting with Tire Inflation Kit
- 4.78 Rear Axle Ratio
- Daytime Running Lights
- Tinted Door Glass and Operating Wing Windows
- Backup and Side View Cameras
- Leatherette Driver and Passenger Air Ride Seats with Swivel Bases
- 12V Accessory Ports
- CB Radio with Left Hand Mirror Mounted Antenna
- XITE® 6” Touch Screen Dash Infotainment System with AM/FM, Bluetooth®, Sirius/XM® (tuner and antenna), Rand McNally® RV Navigation with Lifetime Updates and Wi-Fi-Connected Services (live fuel, weather, and local search)
- Chassis BatteryShut Off Switch in Cab
- One Valve Parking Brake System with Warning Indicator
- Engine After-Treatment Device, Automatic Over-the-Road Regeneration, and Dash-Mounted Regeneration Switch
- Momentary Battery BoosterSwitch for Connecting Chassis and House Batteries n Marker Lights with Separate InterrupterSwitch
- Low Air Pressure Light and Buzzer
- Cruise Control
- Adjustable Steering Column
- 18” Leather-Wrapped Steering Wheel
- Burlwood Woodgrain Driver Instrument Panels
- Power and Heated Exterior Mirrors
- Power Windows and Locks
- Air Horn
- 3-PointSeat Belts
- Dual Reading Lights
- Two (2) Cup Holders in Dash
Construction
- 2” Aluminum-Framed, Laminated Sidewalls with Block Foam Insulation
- Gel-Coat Fiberglass Walls
- Aluminum-Framed Floor
- Aluminum-Framed Roof Trusses
- Crowned, One-Piece Fiberglass Roof
- Foil-Lined Ductwork Throughout
- Fiberglass Front Cap, Rear Cap, and Front Wing Panels
- Automatic, 4-Point Hydraulic Leveling Jacks
- Dual-Pane, Dark-Tinted, Frameless Windows
- Seamless, Easy-Clean Rotocast Storage Compartments
- Side-Hinged, Locking Aluminum Exterior Storage Doors with Paddle Latches
- Electric Slide System
Exterior
- Custom Full Body Paint and Diamond Shield® Paint Protection
- Roof-Mounted, Integrated Armless Patio Awning with LED Lighting and Wind Sensor
- Aluminum-Wrapped Slideout Toppers
- LED Patio Light
- Entry Door with Rotary Latch; Dark-Tinted, Frameless Window; and Shade
- Keyless Entry Touch Pad at Coach Door
- Lighted Acrylic Entry Grab Handle
- Power Entry Steps
- Exterior Wall-Mounted Entertainment Center with 32” LED TV, AM/FM/CD/DVD Module, and Two (2) Speakers (N/A 35DS with Optional 2-Way Refrigerator)
- Front and Rear LED Clearance and Marker Lighting
Interior
- Ceramic Tile Flooring with Flex Grout
- Deluxe Carpet with Pad in Select Living Area Slide Rooms
- Soft-Touch Padded Vinyl Ceiling
- LED Recessed Ceiling Lights
- Coordinating Fabric Window Treatments and Lambrequins with Hardwood Trim and Crown
- Day/Night Roller Shades
- Cherry Hardwood Cabinetry
- Cherry Hardwood Raised Panel Passage Doors
- Full Extension, Soft-Closing Drawer Guides (where applicable)
- Hidden Hinges
- 40” Samsung® LED SMART TV (LivingArea)
- Samsung® Blu-Ray® Home Theater AM/FM/CD/DVD System with 5.1 Surround Sound (Living Area)
- Lighted Entry with Non-Skid Rubber Steps and Risers
- Thermal, Reflective Front Privacy Shades
- USB Charging Ports
Kitchen
- 16 cu. ft. Residential Refrigerator with Ice Maker (Double-Door)
- Sealed Gas Range with Solid Surface Covers
- Convection Microwave Oven
- Solid Surface Countertops with Hand-Laid Tile Backsplash
- Double-Bowl Stainless Steel Sink with Solid Surface Covers
- Residential Single-Handle Faucet with Sprayer
- Pantry
- Under-Cabinet Lighting
- MaxxAir® Power Vent with Built-In Rain Cover and Remote
Bedroom or Bunk Area
- King Bed (67” x 75”) with iCool® Gel-Infused Memory Foam Mattress
- Under-Bed Storage (Floor Plan Specific)
- Designer Bed Package
- 37BH: Bunk Bed Mattresses (28” x 76”) and Privacy Partition
- 37BH: Two Bunk CD/DVD Players
- 32” Samsung® LED SMART TV
- Samsung® DVD Player with Sound Bar
- Cedar-Lined Wardrobe
- Nightstands with Solid Surface Countertops
- Deluxe Padded Headboard
- Deluxe Carpet with Pad
- LED Reading Lights
- USB Charging Ports
Bathroom
- Fiberglass Shower
- Shower Skylight
- Glass Shower Door
- Oxygenics Body Spa® RV Shower Head
- Solid Surface Countertop
- Under-Mount Sink with Residential Brushed Nickel Faucet
- Porcelain Foot-Flush Toilet (Floor Plan Specific)
- Porcelain Electronic-Flush Macerator Toilets (37RB)
- MaxxAir® Power Vent with Built-In Rain Cover and Remote
Utilities
- Dual 12V Group 4D AGM Auxiliary Batteries
- Battery Disconnect
- 50-Amp Service with Power Cord Reel
- 3,000W Pure Sine Wave Inverter/Charger
- 8kW Onan® Diesel Generator with Auto Transfer Switch (Mounted on Isolator Pads)
- Automatic Generator Start
- Dual Roof-Mount and Ducted 15,000-BTU Air Conditioners with Heat-Pumps
- Aqua-Hot® 400LP System
- Dual-Zone Thermostatically-Controlled Heating and Cooling
- 20.3-Gallon LP Tank (WC)
- LP Quick Connect
- Water Filtration System
- Interior Monitor Panel with LPG/Tank/Battery Readout
- Exterior Shower iService Bay
- Power Water Hose Reel in Service Bay
- Exterior GFCI Receptacle
- Jack® Digital Antenna with LED Signal Strength Indicator
- Cable TV/Satellite Hookup in Service Bay
- Thetford® Sani-Con Turbo Macerator System
- Black Tank Flush
- Utility Compartment Heated by Aqua-Hot® System
- 12V On-Demand Water Pump
- Carbon-Monoxide, LP Gas, and Smoke Detectors
- Fire Extinguisher
- Winegard® In-Motion T4 Satellite (Dish® SD-HD, DirecTV® SD, BellTV® SD-HD)
Options
- Cab-Over Bed with 40” LED TV on Power Swing Arm (Extended Front Cap)
- Entertainment Center with 50” Samsung® LED 4K SMART TV and Fireplace in Place Of Loveseat (37BH & 37TS Only)
- Dual Reclining Theater Seats in Place of Sofa (N/A - 35DS)
- 12 cu. ft. 2-Way Refrigerator with Ice Maker (Four-Door)
- Tile Floor in Bedroom in Place of Carpet
- Winegard® Trav’ler Stationary Triple LNB Satellite Dish (DirecTV® SD-HD)
- Canadian Winegard® Trav’ler Stationary Triple LNB Satellite (Shaw Direct® SD-HD)
- Washer/Dryer (N/A - 35DS)
- Solar Panels - Two 100 Watt with 30-Amp Controller
- All-Electric Package: Induction Range with Induction Pan Set, Aqua-Hot® 400D Diesel System, and Exterior Storage Compartment in Place of LP Tank
