- Floorplan - 2016 Coachmen RV Orion P24RB
- AI Generated to Remove Obstruction
- SALE PRICE: $49,995
- List: $64,995 23% OFF
- You Save: $15,000
-
Sleeps 3
-
Rear Bath
-
24ft Long

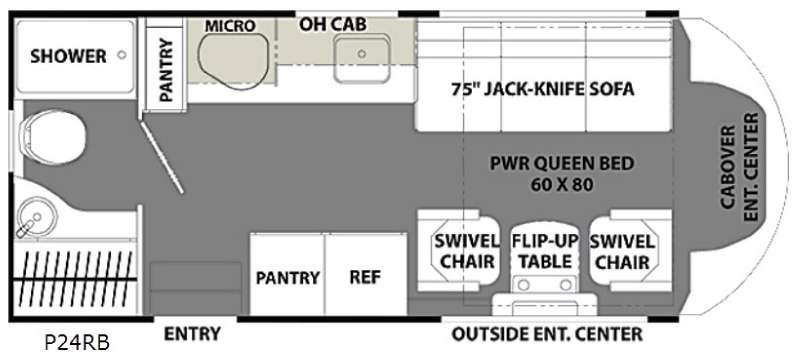

ORION Floorplan
Specifications
Sleeps | 3 | Length | 24 ft 6 in |
Ext Width | 7 ft 8 in | Ext Height | 10 ft 1 in |
Int Height | 6 ft 7 in | Hitch Weight | 2000 lbs |
GVWR | 9350 lbs | Fresh Water Capacity | 25 gals |
Grey Water Capacity | 32 gals | Black Water Capacity | 32 gals |
Furnace BTU | 18000 btu | Fuel Type | Gas |
Miles | 49000 | Engine | 3.6L V6 280HP |
Chassis | Ram 3500 ProMaster | VIN | 3C7WRVLG1FE519082 |
Description
The Orion class C gas motor home by Coachmen RV features a rear bath and outside entertainment center.
Step inside model P24RB to the left is the private bath complete with a shower, sink, and a toilet located in the rear of the coach.
To the right of the entry door the kitchen area includes a pantry and a refrigerator on one side. On the opposite side is an additional pantry, a sink, residential microwave, and overhead cabinets.
The living space includes a 75" jack-knife sofa and two swivel chairs with a flip-up table in between. In the front you will find an entertainment center over the cab. When you are ready to sleep, the powered queen bed lowers just above the living space.
There is an outside entertainment center with a 24" TV with stereo, DVD, and speakers when it's time to enjoy the outdoors. The Orion coach is sure to provide many fun memories on the road!
Features
Standard Features (2016)
Interior Appointments
- Powered Jack Wing Antenna
- LP Leak Alarm
- Smoke Detector
- Carbon Monoxide Detector
- Fire Extinguisher
- Factory Dash Radio AM/FM/CD/U-Connect Bluetooth
- Back-up Monitor on Rear View Mirror
- 32Prime; LCD TV, DVD & Speakers with Subwoofer
- Pre-wired for Satellite Dish through Coax Input
Interior Equipment
- 1 1/4Prime; High Pressure Laminate Countertops
- Bamboo Rolled Flooring
- Vinyl Soft Touch Ceiling
- Roller Bearing Metal Drawer Guides
- Poplar Drawers (behind doors are Techwood)
- MCD Window Shades (where applicable)
- Tinted Windows
- Swivel/Adjustable Factory Pilot & Passenger Seats
- 3-pt. Belted Swivel Chairs w/Flip-up Table
- 75Prime; Jack-Knife Sofa
- Residential Doors & Drawers
- Residential Bath Door
- Curved Bar Grab Handle at Entrance Door
Galley
- Residential Microwave
- Domestic Euro Style 3-Way Refrigerator
- Euro Style Sink & Faucet w/Glass Lid
- Lighted Low Profile Range Hood
- Euro Style 2 Burner Cook Top w/Glass Lid
Bath & Water
- Water Panel w/City/Tank/Winterize/Waste Tank Flush
- Low Point Drain and Winterize Valve at Fresh Tank
- Outside Shower
- Power Bath Vent
- On Demand Water Pump
- Undermount American Stonecast Sink
- Satin Nickel Shower Head and Faucets
- Curved Shower Door
- Black Towel Ring/TP Holder/Robe Hooks
- Composite Foot Flush Toilet
- 6 Gallon Gas E.I. Water Heater
- Skylight over Shower
- Trunk Door at Termination
Sleeping
- Queen Bed 60x80 Powered Lowering Bed
- Fabric Covered Upgraded Mattress
- Bedspread
- Windshield Privacy Cover
- Bedroom Privacy Curtain w/Track
Electrical/Heating/A/C
- 30 amp Power Cord
- 55 amp Electronic Converter
- Dual Auxiliary Battery
- Manual Generator Changeover
- 2.8 KW Onan Gas Generator
- GFI Circuit
- Auxiliary Battery Disconnect
- LED Patio Light
- Wall Mounted Thermostat
- 18,000 BTU E.I. Ducted Furnace
- 13,500 BTU Low Profile Ducted A/C w/Heat Strip
- Recept and Coax Connect under Awning
- LED Interior Lights
- Exterior Entertainment Center w/24″ TV/Stereo/DVD/Speakers
- Exterior Grab Handle at Entrance Door
- Command Center
- Heated Holding Tanks
- Pop Up Kitchen Charging Station
- Exterior Solar Panel w/Connection by Entry Door
- EMS Power Shedding System
Automotive/Exterior/Construction
- 24-Gallon Fuel Tank
- 3.6L V6 Gas w/6 Speed Automatic 280HP
- Driver & Passenger Air Bags
- Cruise Control
- Tilt Steering Wheel
- In Dash Air Conditioning
- Power Windows & Locks
- Factory Exterior Mirrors w/Heat & Remote
- 2,000 lb. Towing Hitch w/4 Way Flat Plug
- Laminated Aluminum 2Prime; Sidewalls
- Crowned Laminated TPO Roof
- Steel Entry Step w/Battery Storage
- Slam Latch Trunk Doors
- 80Prime; Radius Entrance Door w/Window, Deadbolt & Strut
- Lamilux 4000 Sidewalls & Rear Wall
- Vinyl Graphics
- Plasti-Cote Metal Side Boxes
- Fiberglass Rear Cap
- Fiberglass Rear Wheel Skirts
- Aluminum Rims
- Carefree Armless Power Awning
- Aluminum Body Side Moldings
- Smooth Exterior Range Vent
- Exterior LED Lights w/Center Bar
- LED Accent Strip Lights in Front Cap
- Color Backup Camera
- Side View Cameras
- Tread-Lite Single Step Power Entrance Step
Warranty
- Motor home – 12 Month/ 12,000 mile limited warranty
- ProMaster Chassis – 36 month/ 36,000 mile bumper-to-bumper warranty
- RAM ProMaster Powertrain – 60 month/ 100,000 mile limited warranty
- Travel Easy Roadside Assistance
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
