+10
-
Sleeps 7
-
4 Slides
-
Bunk Over CabBath and a Half
-
45ft Long
-
Capri, Tide Pool, Stallion

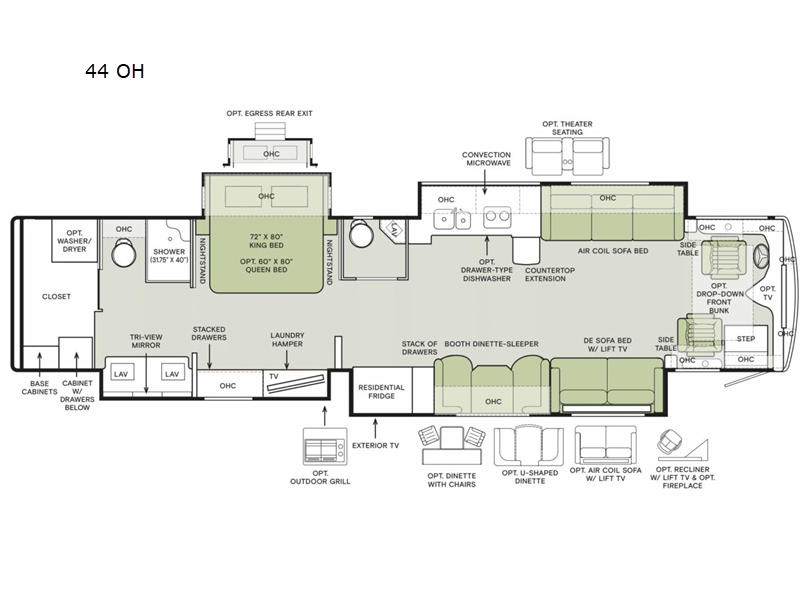

44 OH Floorplan
Specifications
| Sleeps | 7 | Slides | 4 |
| Length | 45 ft | Ext Width | 8 ft 5 in |
| Ext Height | 13 ft 3 in | Int Height | 6 ft 11 in |
| Interior Color | Capri, Tide Pool, Stallion | Exterior Color | Gen 10, Gen 11; Bordeaux, Waterfall, Frosted Granite, Nasa, White Mahogany. Midnight Blue Edition |
| Hitch Weight | 10000 lbs | GVWR | 45660 lbs |
| Fresh Water Capacity | 100 gals | Grey Water Capacity | 100 gals |
| Black Water Capacity | 55 gals | Tire Size | 295/80R22.5 |
| Generator | 10.0kW Onan Quiet Diesel | Fuel Type | Diesel |
| Engine | Cummins L9 | Chassis | Freightliner PowerGlide XC Raised Rail Rear |
| Horsepower | 450 hp | Fuel Capacity | 100 gals |
| Wheelbase | 310 in | Available Beds | King |
| Torque | 1250 ft-lb | Refrigerator Type | Stainless Steel Residential with French Doors and Bottom Freezer |
| Refrigerator Size | 25 cu ft | Convection Cooking | Yes |
| Cooktop Burners | 2 | Number of Awnings | 2 |
| Axle Weight Front | 15660 lbs | Axle Weight Rear | 20000 lbs |
| Axle Weight Tag | 10000 lbs | Water Heater Type | Hydronic |
| AC BTU | 45000 btu | Basement Storage | 232 cu. ft. |
| TV Info | LR TV, BR Mounted TV, Ext. TV | Awning Info | Girard Power Patio and Window |
| Washer/Dryer Available | Yes | Gross Combined Weight | 55660 lbs |
| Shower Type | Shower w/Seat | Electrical Service | 50 amp |
Description
STOCK PHOTOS! Contact us to confirm order options and availability!
Tiffin Motorhomes Phaeton Class A diesel motorhome 44 OH highlights:
- Two Sofa Beds
- Convection Microwave with Air Fryer
- Bath and a Half
- Exterior TV
- Walk-In Closet in Bath
- King Bed Slide Out
- Hydronic Heating
You won't want to travel any other way once you step inside this Phaeton motorhome! The full rear bathroom is decked out in convenient features like the large closet that has a cabinet with drawers below, an area prepped to add an optional washer and dryer, plus a shower with a seat and a dual sink vanity with a tri-view mirror. The kitchen has a stainless steel refrigerator to keep your perishables fresh, a countertop extension for more prepping and storage space, and the ability to add an optional drawer-type dishwasher for easy clean up. You can enjoy your meals at the booth dinette-sleeper then relax on either the air coil sofa bed or DE sofa bed with a lift TV above it. A few options you might want to add are the optional outdoor grill, the drop-down front bunk, the dinette with chairs, and more.
Each one of these Tiffin Motorhomes Phaeton Class A diesel motorhomes offer high-end elegance at every turn! A PowerGlide XC raised rail rear engine diesel chassis will give you a smooth ride for every mile, and each coach comes with a Cummins L9 450 HP engine to power your journeys. There is a 10.0 kW Onan Quiet Diesel generator, three 15k BTU A/C units, and a Firefly integrations Eclipse module to keep you connected wherever you go. Outside, you'll appreciate the custom rock guard to protect your unit, along with full-body paint with four layers of clear coat and high-performance protection film on the front cap and select areas. A Girard power awning with LED lights also comes standard plus a fiberglass reinforced plastic basement floor, an exterior TV, and more. A few new features you are sure to enjoy are the standard exterior ladder, matte finish tile floor option, new Generation 12 paint schemes, Starlink roof prep, and more!
Features
Standard Features (2025)
Chassis and Drivetrain Features
- Cummins L9 450 HP Diesel Engine with 1,250 lb-ft Torque
- Freightliner PowerGlide XC Raised Rail Rear Engine Diesel Chassis
- 240-Amp Alternator
- Two-wheel Drive
- Allison® 3000 MH 6-speed Automatic Transmission with Lock-up Torque Converter
- Front and Rear 295/80R 22.5 Tires
- (2) 12-Volt Flooded Lead-Acid Chassis Batteries
- Hydraulic Leveling Jacks with Control Panel
- ZF Independent Front Suspension
- Rear Radiator
- Front Disc Brakes and Rear Drum Brakes
- Full Air Brake System with Automatic Slack Adjusters
- Three-stage Compression Brake
- Manual Parking Brake
- Driver and Passenger Side Fuel Fill
- Tire Pressure Monitoring
- Adaptive Cruise Control
- Automatic Traction Control
- Collision Mitigation with Forward Warning and Active Braking
- Electronic Stability Control
- Freightliner V-Series V-Ride Rear Suspension
- Custom Tuned Sachs Shock Absorbers
- Steerable Tag Axle (44 OH Only)
Wheel Options
- Aluminum Wheels (DEP)
- Black Aluminum Wheels (DEP)
Construction
- Seamless One-piece Gel-coat Fiberglass Molded Roof Cap
- 5 1/4" Formed Roof Insulation
- Tubular Aluminum Roof Skeleton Frames
- Extraordinaire Ducted Air Cooling System
- One-piece Molded Gel-coat Fiberglass Front and Rear Caps
- Steel Cockpit Overhead Support Frame
- Crane Composites Noble Select All-Composite Exterior Sidewalls
- Tubular Aluminum Wall Skeleton Frames
- High-performance thermal insulation in sidewalls
- Engineered Wood Sub-flooring
- Laminated Elevated Sub-flooring with 2 3/4" Thick Thermal Insulation
- Steel Basement Construction
- Rust Protective Undercoating
- Hydraulic slide out mechanisms
- Extra storage chassis construction
Electrical
- Spyder Controls Multiplex System
- Firefly Integrations Eclipse Module
- Centralized 10” Spyder System Main Monitor
- Passenger Console Spyder System Color Touchscreen
- Interior Entryway Spyder System Color
- Exterior Spyder System Color Touchscreen
- Additional Spyder Color Touchscreens Throughout Coach
- 10.0-Kilowatt Onan® Quiet Diesel Generator
- Generator Slide Tray
- 2,000-Watt Pure Sine Wave Inverter Charger with Auto-Gen Start and Interior Remote Control
- (3) 15,000-BTU Low Profile Air Conditioners with Heat Pumps and Condensation Drains
- 50-Amp Shore Power with Powered Retract Reel
- Auxiliary Solar Port
- Energy Management System
- HD Over-the-air Antenna
- Park Cable and Ground Satellite Hook-up
- Prep for In-motion Satellite
- Blu-ray™ Player
- Satellite Receiver
- 12-Volt Breaker Panel
- 12-Volt Disconnect Switch
- Rotary Disconnect Switches for House Batteries, Chassis Batteries, and Inverter
- Ground Fault Circuit Interrupter (GFCI) Outlets at Galley, Lavatories, and Sewer Bay
- 110-Volt Exterior Receptacle
- Surge Guard® Transfer Switch
- USB Receptacles Throughout Coach
- Starlink Roof Prep
Heating and Cooktop Power Source Options
- Liquid Propane (LP) Coach (Standard) (N/A 44 OH)
- Hydronic Heating & Electronic Appliance Equipped Coach (Standard on 44 OH) (Optional on all other models)
House Battery Options
- (6) 6-Volt, 230-Amp Hours Flooded Lead-Acid House Batteries
- (6) 6-Volt, 210-Amp Hours Extended Cycle AGM House Batteries (Optional)
- (3) 12-Volt, 270-Amp Hours Lithium House Batteries
- Battery Slide-out Tray (DEP)
Space Heating Options
- (1) 30,000-BTU and (1) 20,000-BTU Ducted Furnaces (DEP; 35 CH, 37 BH) (N/A 40 IH, 44 OH)
- (2) 30,000-BTU Ducted Furnaces (DEP; 40 IH Only)
- Aqua-Hot® 450D Heat Exchanger (DEP; 35 CH, 37 BH, 40 IH) (Std. 44 OH)
Solar Panel Options
- Prep for Solar Panels
- (3) 200-Watt Solar Panels with (1) 30-Amp Controller
- (6) 200-Watt Solar Panels with (2) 30-Amp Controllers (N/A 35 CH)
Electrical Add On Options
- In-motion Satellite Dish
- Prewiring for Winegard® Trav’ler™ Satellite
Internet & Phone
- Prep for Wi-Fi Booster (DEP)
- Wi-Fi Booster (Optional)
- Starlink® Pro (Optional)
Plumbing
- Aqua View Showermiser
- Water Filter
- Water Pump Switch Access from Spyder System and Sewer Bay Board
- Low-point Water Drain Lines
- Black Holding Tank Flush System
- Gravity Water Fill
- Heated Water and Holding Tank Compartment
- SeeLevel Tank Monitor
- Centralized Exterior Sewer Bay with Gravity Black and Grey Evacuation Ports
- Exterior Rinse Hose with Shower Head
- Sewer Bay Hand Sanitizer and Paper Towel Holders
- Fresh Water Hose with Power Retract Reel
- Grey Tank Flush System
Water Heater Options
- Truma AquaGo Comfort Instant Water Heater (DEP) (N/A 44 OH)
- Aqua-Hot 450D Heat Exchanger (Std. 44 OH) (DEP; all other models)
- Water Heater Bypass System (DEP) (N/A 44 OH)
Exterior
- Full-body Paint with (4) Layers of Clear Coat
- Single-Colored Slide Out Endwalls
- High Performance Protective Film on Front Cap and Select Areas
- Girard® Powered Door Awning with Integrated LED Lighting
- Girard® Manual Window Awning Package
- Girard® Slide-out Toppers
- Side-swinging Exterior Storage Doors with Gas Shocks
- Lockable Handles on Compartment Doors
- Motion-sensor Lights in Cargo Bay
- 120-Volt and 12-Volt Outlets Inside Cargo Bays
- Pass-through Basement Storage
- Charcoal Carpet Cargo Walls
- Fiberglass Reinforced Plastic Basement Floor
- Frameless, Dual-Pane Windows
- Exterior Patio Light
- Daytime Running Lights
- Docking Lights
- Chrome Power Heated Side-View Mirrors with Integrated Cameras
- Exterior TV with Soundbar
- Fast Charge USB ports within Exterior TV Compartment
- Lightweight Entry Door with Integrated Screen
- Deadbolt Front Entrance Lock
- Lighted Entry Door Grab Handle
- Automatic Stainless Steel Double Entry Step
- Keyless Entry System for Front Entrance and Component Doors
- Mud Flaps
- Custom Rock Guard
- Lippert On-The-Go Telescoping Ladder
Patio Awning Options
- (1) Girard® Side-mounted Powered Patio Awning with Integrated LED Lighting
- (2) Girard® Roof-mounted Powered Patio Awnings with Integrated LED Lighting and Dual Pitch Feature (Optional)
Slide Tray Options
- (1) Manual Storage Compartment Slide Out Tray (Optional)
- (2) Manual Storage Compartment Slide Out Trays (Optional; 40 IH, 44 OH Only)
Exterior Add On Options
- Outdoor Electric Grill (DEP, Optional; 40 IH, 44 OH Only)
Paint Schemes
- Generation 11 Exterior Paint Scheme (Optional)
- Generation 12 Exterior Paint Scheme (Optional)
Paint Colors
- Midnight Blue Full Body Paint (includes Black Aluminum Wheels (Optional)
- Waterfall Full Body Paint (Optional)
- Nasa Full Body Paint (Optional)
- Frosted Granite Full Body Paint (Optional)
- Bordeaux Full Body Paint (Optional)
- White Mahogany Full Body Paint (Optional)
Interior
- Handcrafted Overhead Cabinetry
- Solid Surface Step Well
- Powered Step Well Cover
- Storage Compartment Within Entry Steps
- Recessed Step Well Lighting
- Living Area TV
- Solid Surface Galley Countertop
- Handcrafted Slide-out Fascia
- Soft Touch Vinyl Ceiling
- Dimmable LED Lighting
- Prep for Washer and Dryer
- Carbon Monoxide Detector
- LPG Leak Detector
- Smoke Detector
- Fire Extinguisher
- Solar and Privacy Shades
- Soft-closing Drawers
- Powered Roof Vents
- Central Vacuum System with VacPan® Automatic Dustpan
- Interior Grab Handle at Entry Door
- Egress Windows Throughout Coach
Interior Decor Packages
- Carpi (Optional)
- Tide Pool (Optional)
- Stallion (Optional)
Upholstery Fabrics
- Ultrafabrics® Tottori Tatami Mat (DEP)
- Ultrafabrics® Tottori Rice Paper (DEP)
Cabinetry Color
- Sandstone (Optional)
- White Linen (Optional)
- Platinum (Optional)
- Black Truffle (Optional)
Floor Tiles
- Modern Peak Matte Porcelain Tile (Optional)
- Editorial Volakas Glazed Porcelain Tile (Optional)
Interior Add On Options
- Standalone Living Area Fireplace (35 CH Only)
- Stacked Washer and Dryer
- Gold Heat® Dual Zones Heated Tile Floor
Drivers Compartment
- Ultrafabrics® Tottori Power Driver and Passenger Seats
- Dual Driver And Passenger Seat Armrests
- Swivel Bases for Driver and Passenger Seats
- Powered Passenger Seat Footrest
- Integrated Seat Belts on Driver and Passenger Seats
- Tilt and Telescoping Steering Wheel with Integrated Controls
- Adjustable Accelerator and Brake Pedals
- Wraparound Dash with Graphite Accents
- Mounted Dash Fans
- Cupholders on Driver and Passenger Side
- Digital Dash Cluster
- (1) Center Storage Drawer
- Generator Start & Stop Rocker Switch
- USB Dash Receptacles
- 12-Volt Dash Receptacle
- Backlit Dash Rocker Switches
- Passenger Console Wireless Phone Charger
- Driver and Passenger Map Lights
- One-piece Panoramic Windshield
- Single-motor Intermittent Windshield Wipers
- Automatic LED Headlights
- Side-view Cameras
- Color Back-up Camera
- 10" High Definition LED Multichannel Camera Monitor
- Stereo with AM & FM Radio, CD Player, and Satellite Radio
- Ceiling Mounted Speakers
- Overhead Cabinetry with Wooden Panel Doors
- Auxiliary Start Switch
- Concealed Air Horn
- Manual Opening Driver Side Window
- Solid, Non-opening Passenger Side Window
- Powered Solar and Privacy Windshield Shade
- Manual Solar and Privacy Shades on Side Windows
Drivers Compartment Add-On Options
- Blind Spot Monitoring System
- In-dash Navigation System
- Front Overhead TV
- Electric Front Overhead Drop-Down Bunk
Dinette and Living Area
Driver Side Dinette
- 75" Booth Dinette-Sleeper (37 BH Only)
- 75" U-shaped Dinette (Optional; 37 BH Only)
- 75" Dinette with Chairs (Optional; 37 BH Only)
Driver Side Furniture
- 74" Air Coil Sofa Bed (N/A 44 OH)
- 74" Theater Seating (Optional; N/A 44 OH)
- 89" Air Coil Sofa Bed (44 OH Only)
- 89" Theater Seating (Optional; 44 OH Only)
Passenger Side Dinette
- 75" Dinette with Chairs and Lift TV (35 CH Only)
- 75" Dinette Bar with Lift TV (Optional; 35 CH Only)
- 72" Booth Dinette-Sleeper (40 IH Only)
- 72" Dinette with Chairs (Optional; 40 IH Only)
- 72" U-shaped Dinette (Optional; 40 IH Only)
- 75" Booth Dinette-Sleeper (44 OH Only)
- 75" U-shaped Dinette (Optional; 44 OH Only)
- 75" Dinette with Chairs (Optional; 44 OH Only)
Passenger Side Furniture
- 64" DE Sofa Bed with Lift TV (37 BH Only)
- 68" DE Sofa Bed with Lift TV (40 IH Only)
- 68" Air Coil Sofa Bed with Lift TV (Optional; 40 IH Only)
- 84" DE Sofa Bed with Lift TV (44 OH Only)
- 84" Air Coil Sofa Bed with Lift TV (Optional; 44 OH Only)
- Recliner and Lift TV (Optional; N/A 35 CH)
- Recliner and Lift TV with Fireplace (Optional; N/A 35 CH)
Kitchen
- 1.7-Cubic Foot Smart Convection Microwave with Air Fry
- Double Bowl Kitchen Sink with Single Lever Faucet and Pull-down Sprayer
- Built-in Soap Dispenser
- Galley Overhead Cabinets with Pull-out Drawers
- Panoramic Galley Window
- Task Lighting
- Toe Kick Lighting
- Full Tile Backsplash
- Solid Surface Galley Countertop, Sink, and Cooktop Cover
Refrigerator Options
- 22-Cubic Foot Stainless Steel Residential Refrigerator with French Doors and Bottom Freezer (Standard; 35 CH Only)
- 25-Cubic Foot Stainless Steel Residential Refrigerator with French Doors and Bottom Freezer (Standard; N/A 35 CH)
Cooking Appliance Options
- Three-Burner Liquid Propane Cooktop (DEP; N/A 44 OH)
- Two-Burner Induction Cooktop (DEP) (Standard on 44 OH Only)
Kitchen Add On Options
- Drawer-style Dishwasher (Optional)
- Manual Release Expand-An-Island (Standard; N/A 35 CH)
Bedroom
- Under Bed Storage
- Bedside Windows
- Overhead Cabinets with Headboard
- Bed Comforter with Throw Pillows
- Handcrafted Privacy Door
- LED Reading Lights
- Nightstand with Solid Surface Tops
- Mounted Flat-panel TV
- Centralized Entertainment Center
- Ceiling Fan
- Laundry Hamper
Mattress Options
- Memory Foam King Mattress (72" x 80") with Power Smart Lift (Standard; 35 CH Only)
- Memory Foam Queen Mattress (60" x 80") with Power Smart Lift (Optional; 35 CH Only)
- Memory Foam King Mattress (72" x 80") (N/A 35 CH) (Standard on all other models)
- Memory Foam Queen Mattress (60" x 80") (Optional; N/A 35 CH)
Bedroom Storage Options
- Floor-to-ceiling Closet Space (Standard; 35 CH, 40 IH Only)
- Wardrobe with Drawers Underneath (Standard; 37 BH Only)
- Walk-in Closet (Standard; 44 OH Only)
Bedroom Add-On Options
- Safe
- Bedroom Egress Door
Bathroom
- Solid Surface Lavatory Top
- Handheld Shower Head with Slide Bar
- Shower Skylight
- Shower LED Light with Sliding Cover
- Towel and Toilet Paper
- Roof Vent Fan
- Base Cabinet
Number of Bathrooms
- (1) Bathroom (35 CH Only)
- (1) Bathroom and (1) Half-bath (N/A 35 CH)
Master Bathroom Sink
- (1) Porcelain Master Bathroom Sink (37 BH Only)
- (2) Porcelain Master Bathroom Sinks (N/A 37 BH)
Shower
- One-Piece Molded Fiberglass Shower (31.75" x 40") (N/A 37 BH)
- One-Piece Molded Fiberglass Shower (28.5" x 40.5") (37 BH Only)
Toilet
- (1) Macerator Toilet (35 CH Only)
- (1) Gravity Flush Toilet and (1) Macerator Toilet (N/A 35 CH)
Master Bathroom Medicine Cabinet
- Medicine Cabinet with Tri-view Vanity Mirror (N/A 37 BH)
- Mirrored Medicine Cabinet (37 BH Only)
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
Save your favorite RVs as you browse. Begin with this one!
Loading
*All calculated monthly payments are an estimate for qualified buyers only and do not constitute a commitment that financing or a specific interest rate or term is available. Financing terms may not be available in all Campers Inn locations. Campers Inn RV Sales is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual inventory in stock on our lot. Please contact us for availability as our inventory changes rapidly.
Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.
Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.
