Sleeps 5
-
3 Slides
-
Rear Bedroom
-
36ft Long
-
33,950 lbs
-
Pierson, Marvella, Briarcliff, Omni

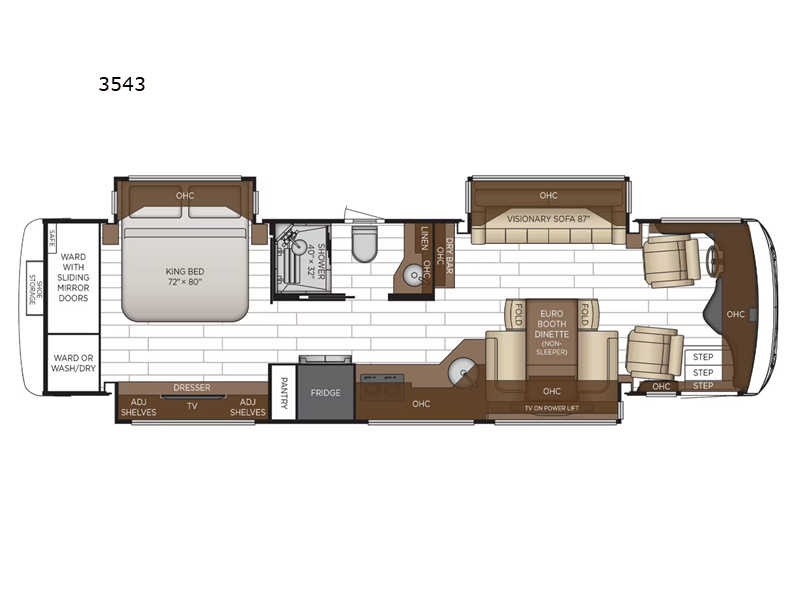

3543 Floorplan
Specifications
Sleeps | 5 | Slides | 3 |
Length | 35 ft 10 in | Ext Width | 8 ft 6 in |
Ext Height | 12 ft 3 in | Int Height | 6 ft 9 in |
Interior Color | Pierson, Marvella, Briarcliff, Omni | Exterior Color | Mansfield, Newcastle, Plymouth, Rosyth |
Hitch Weight | 10000 lbs | GVWR | 38600 lbs |
Dry Weight | 33950 lbs | Cargo Capacity | 4650 lbs |
Fresh Water Capacity | 105 gals | Grey Water Capacity | 60 gals |
Black Water Capacity | 40 gals | Tire Size | 305/75R 22.5 |
Furnace BTU | 50000 btu | Generator | 8.0Kw Cummins Onan Diesel Quiet |
Fuel Type | Diesel | Engine | 8.9L Cummins |
Chassis | Freightliner | Horsepower | 450 hp |
Fuel Capacity | 90 gals | Wheelbase | 226 in |
Available Beds | King | Torque | 1250 ft-lb |
Refrigerator Type | Stainless Steel Three Door Residential w/Ice Maker | Convection Cooking | Yes |
Cooktop Burners | 2 | Shower Size | 40" x 32" |
Number of Awnings | 1 | Axle Weight Front | 14600 lbs |
Axle Weight Rear | 24000 lbs | Water Heater Type | Continuous |
AC BTU | 30000 btu | TV Info | LR Samsung 50" TV, BR Samsung 43" TV |
Awning Info | Girard® G2000 Power with Wind Sensor, Remote Control & LED Lights | Washer/Dryer Available | Yes |
Gross Combined Weight | 48600 lbs | Shower Type | Shower w/Seat |
Electrical Service | 50 amp |
Description
Newmar New Aire Class A diesel motorhome 3543 highlights:
- Full-Wall Slide
- Mid-Coach Bath
- Euro Booth Dinette
- Dry Bar
- 87" Visionary Sofa
- King Bed w/Headboard
Looking to relax in the great outdoors, travel to see family cross-country, or shop at your favorite places while staying at an RV resort? You can do all of those activities plus more when you travel in this coach! The full-wall slide gives you plenty of room to walk from the front to the back and the two additional slide outs giving you even more space. The main living area offers a visionary sofa, and a Euro booth dinette with two table leaves and two folding chairs for more seating while dining or watching the 50" TV on power lift. You will also be able to utilize the driver/passenger seats which include six-way power lumbar, recline, and footrest when drinking your glass of wine or cup of coffee. The kitchen offers everything you will need to make any meal, plus the stainless steel appliances are stylish. The feature ceiling, the flooring, the drawers with dove tail self closing full extension ball bearing guides, and the super polished solid surface countertop in the kitchen, bathroom and bedroom are even more reasons you will love this coach!
With any Newmar New Aire Class A diesel motorhome, you can enjoy luxury, functionality, style, and modern amenities wrapped up in a small package! And these coaches stand out on the road with the front and rear end caps, the lighted Newmar badge on the front grill, and other sleek LED trim lighting on the front cap. Each is built on a Freightliner or optional Spartan chassis with 450HP Cummins diesel engine giving you the power you want, and includes V-Ride drive axle suspension. More standout features include the back-up alarm, recessed fuel fills with crossover to fill from either side, the Comfort Drive steering, the tire pressure display on the dash, and Mobile Eye lane tracking. The all-electric stainless steel appliance suite includes an induction cooktop, a three-door residential refrigerator, and a Samsung microwave, plus the kitchen offers a backsplash and countertop edging. There is so much more to enjoy, make your selection today!
2024 Info and Specs Shown. Please call us for more details!
