OPTIONAL Diamond Paint
-
OPTIONAL Sand Paint
-
OPTIONAL Steel Paint
-
+96
-
Sleeps 4
-
3 Slides
-
Rear Living AreaKitchen Island
-
36ft Long
-
13,290 lbs
-
MODERN OR VINTAGE FARMHOUSE ATO

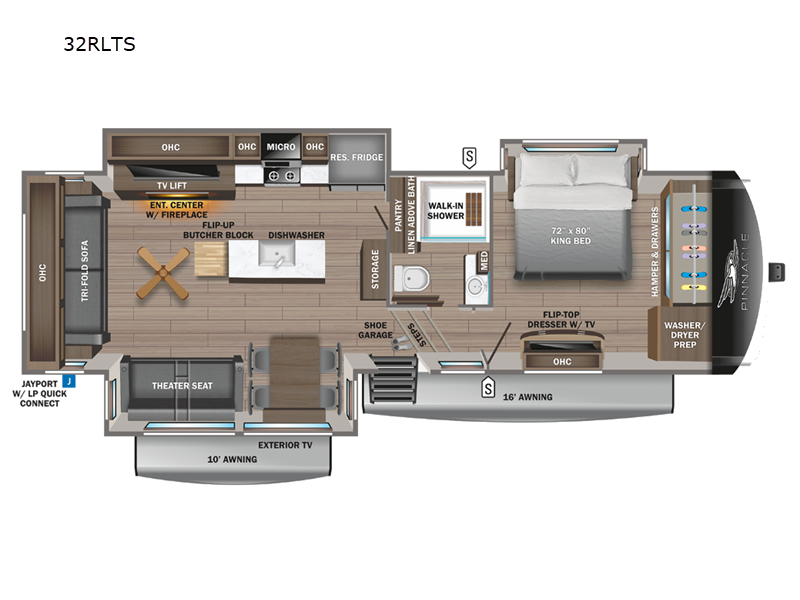

32RLTS Floorplan
Specifications
| Sleeps | 4 | Slides | 3 |
| Length | 36 ft 4 in | Ext Width | 8 ft 6 in |
| Ext Height | 13 ft 4 in | Int Height | 8 ft 6 in |
| Interior Color | MODERN OR VINTAGE FARMHOUSE ATO | Hitch Weight | 2395 lbs |
| GVWR | 16275 lbs | Dry Weight | 13290 lbs |
| Cargo Capacity | 2985 lbs | Fresh Water Capacity | 75 gals |
| Grey Water Capacity | 87 gals | Black Water Capacity | 50 gals |
| Tire Size | 215/75R17.5"H | Furnace BTU | 40000 btu |
| Available Beds | King | Refrigerator Type | Residential |
| Refrigerator Size | 21 cu ft | Convection Cooking | Yes |
| Cooktop Burners | 4 | Number of Awnings | 2 |
| LP Tank Capacity | 40 | Water Heater Capacity | 16 gal |
| Water Heater Type | Gas/Electric DSI | AC BTU | 30000 btu |
| TV Info | LR 50" Smart LED HDTV, BR & EXT 32" 4K Smart LED TV | Awning Info | 10' and 16' Electric with LED Lights |
| Axle Count | 2 | Washer/Dryer Available | Yes |
| Number of LP Tanks | 3 | Shower Type | Walk-In Shower |
| Electrical Service | 50 amp |
Description
Jayco Pinnacle fifth wheel 32RLTS highlights:
- Walk-In Shower with a Seat
- Kitchen Island with Extension
- Tri-Fold Sofa
- Shoe Garage
- Exterior 32" TV
Trips to the lake are made comfortable in this triple slide out fifth wheel. Once you arrive at the campground, set up the two power awnings with LED lights, and there is an exterior TV for the big game. Head inside to relax on the theater seat directly across from the TV and fireplace, or play a game at the free-standing table. The chef of your group will love this Pinnacle kitchen with its residential refrigerator, kitchen island, a pantry, plus additional storage for canned goods or paper products. The full bath will allow you to stay clean throughout your trip, and you'll find a residential style backsplash in the bath, plus a walk-in shower. Nothing says luxury like your own king bed slide out in the front bedroom, a large front closet with hamper and drawers for wrinkle-free clothes, and a flip-up dresser featuring a 32" TV!
Each Pinnacle fifth wheel features Stronghold VBL lamination for the lightest, yet strongest construction in the RV industry. Add that to the Magnum Truss XL6 roof system and Climate Shield zero-degree tested weather protection and you'll be enjoying your fifth wheel for years to come. Some of the exterior conveniences you will appreciate are the Keyed-Alike lock system, the fully enclosed, universal docking center, and the 6-point hydraulic auto-leveling system for quick and easy set up. The 5 Star Handling Package will make towing a fifth wheel a walk in the park, and the two Whisper Quiet A/C units will keep you comfortable during the hot summer months. Inside, you'll enjoy the farmhouse stainless steel sink, the handcrafted hardwood glazed cabinetry, the vinyl flooring throughout, plus many more comforts. There is even a central vacuum system, a wireless remote control system, USB ports throughout, plus many more conveniences to make each trip enjoyable.
Features
Standard Features (2025)
Exterior Equipment
- (3) 40 lb. LP propane bottles with auto regulator (120 lb. max LP system)
- 102 in. widebody construction
- 12 in. structural steel I-beam with 10 in. steel drop frame
- 120V heat blankets on all tanks plus 12V heat tape on fresh water line
- 3,000 lb. tow hitch with 4-way pin
- Battery disconnect
- Built in sewer hose carrier
- Climate Shield™ zero-degree tested weather protection:
- 40,000 BTU output furnace
- Double layer fiberglass batt insulation (roof and floor)
- Fully enclosed and heated underbelly (ducted)
- PEX plumbing, 2 in. block foam and reflective foil
- Custom automotive-grade vinyl exterior graphics package
- Digital TV antenna with 5G Wi-Fi extender
- Exterior marine-grade speakers with Bluetooth® controller
- Frameless dark tinted safety-glass windows
- Fully enclosed, universal docking center:
- Black tank flush
- Independent satellite wiring
- Quick-connect outside shower
- Selectable water connections
- Whole coach cable hookups
- Winterization and sanitation hookups
- Inverter pre-wire to select outlets
- JayPort outside griddle prep (standard on all floorplans without a standard outside kitchen)
- JaySMART™ (Safety Markers And Reverse Travel) LED lighting (patented)
- LED exterior lighting package
- Magnum Truss™ XL6™ Roof System (strongest tested roof in the industry) with Alpha roof membrane system with limited lifetime warranty
- Painted fiberglass front and rear cap with clear coat and built-in specialty LED lighting
- Pass-through storage with Slam-latch™ baggage doors
- Skirt metal enclosed drop frame
- Stronghold VBL™ aluminum framed and vacuum bond laminated gel coated fiberglass exterior walls (including slide room end walls)
- Under-mounted spare tire
- Water heater bypass
Standard Interior Equipment
- 12V charging station
- 5/8 in. tongue-and-groove joined plywood floor and 3/8 in. plywood roof decking
- Bathroom skylight
- Built in spice rack in kitchen cabinet (select models)
- Built-in laundry hamper in wardrobe (select models)
- Carbon monoxide and LP detector
- Cedar-lined front wardrobe closet
- Ceiling fan (select models)
- CPAP prepped bedroom
- Extra 120V power outlets in kitchen and slide rooms
- Flip-up countertop extension/bar top (select models)
- Flip-up hidden storage in bedroom chest of drawers (select models)
- Flip-up tabletop storage next to tri-fold sofa (select models)
- Gas-strutted under-bed storage
- Handcrafted hardwood glazed doors, stiles, drawers and trim
- Hidden hinges, magnet latches and soft close cabinet doors and drawers
- Integrated under-mount sink and lever faucet in main bathroom
- LED accent lighting above slideouts
- LED backlit custom framed mirror and medicine cabinet (most models)
- LED interior lighting throughout
- No in floor heat ducts throughout coach
- Pantry with adjustable shelves and pull out drawers includes 120V outlet (most models)
- Porcelain toilet with foot flush
- Removable tray tables at theater seats
- Residential "Do it all" sink with pull-out kitchen faucet, glass rinse, and vegetable rinse
- Residential dove tail jointed drawers throughout
- Residential NuVo H2O whole coach water treatment system with water softening and triple cartridge filters
- Residential quilted bedspread and pillows
- “Shoe garage” in hallway step (select models)
- Soft close, heavy-duty, 75 lb. full extension, steel ball-bearing drawer guides
- Solid hardwood slide fascia
- Stain protected fabric on all furniture
- Toe kick nightlights in bedroom, bathroom and kitchen
- Tri-fold hide-a-bed sofa with sleep surface (select models)
- Vinyl flooring (made in the USA) throughout including slide rooms
Customer Value Package (Mandatory)
- 15,000 BTU “Whisper Quiet” A/C (bedroom)
- 15,000 BTU “Whisper Quiet” A/C with heat pump (main)
- 16 gal. gas/electric DSI water heater
- 50 in. 4K SMART LED HDTV with fully digital HDMI® output and two additional HDMI® cables
- Backup, main entrance door and side observation security camera prep (includes a power switch in the bedroom to use the optional 7 in. monitor for security)
- Custom machined aluminum rims
- Electric patio awning with integrated RGB LED lights (multi-colored with remote control)
- Hidden hinges, magnet latches, and soft close cabinet doors
- JBL® home entertainment system with sound bar and wireless subwoofer
- Keyed-Alike™ lock system (single key for all doors/locks)
- MORryde Safe-T-Rail grab handle
- Residential king (72 in. x 80 in.) mattress with under-bed storage
- Rooftop and ground solar prep
- Wireless remote control system (includes Bluetooth® wireless interior controls) with dimmer switches
5 Star Handling Package (Mandatory)
- 5 in. 16 ply 'H' rated Uniroyal tires
- Dexter® Axles with ABS and Tow Assist - includes Nev-R-Adjust® brakes and E-Z Lube® hubs
- MORryde® LRE-4000™ rubberized suspension
- MORryde® rubber pin box
- Wet bolt fasteners, bronze bushings and 4,000 lb. leaf springs
Luxury Package (Mandatory)
- 2nd electric patio awning with integrated RGB LED lights (multi-colored with remote control)
- 32 in. 4K outside Smart LED TV
- 32 in. 4K Smart LED bedroom TV
- 6-point hydraulic auto-leveling system
- Cellular prep for 5G Wi-Fi antenna and JAYCOMMAND®
- Central vacuum system with dust port
- Day/night roller shades in living room
- Frameless dark tinted safety-glass windows
- Free-standing roll top (no pedestal) table with (2) free-standing and (2) folding chairs
- GE 21 cu. ft. residential refrigerator with 1800W inverter
- GE Profile Series 30 in. residential convection microwave with built in air fryer
- GE Profile Series residential 24 in. range (3.7 cu. ft. with 9100 BTU high output burner)
- High gloss gel coated sidewalls
- JAYCOMMAND® Smart RV System
- LED fireplace with electric space heater
- MORryde® StepAbove™ entrance steps (main entrance) with strut assist
- Oversized multi-battery compartment (industry leading room for 4-6 batteries)
- Powered 50-amp cord reel
- Residential solid-surface kitchen countertop
- Residential walk-in shower with shampoo/soap holder, teak seat and shower tower
- Solid hardwood cabinet doors, stiles, and fascia
- Under-sink dishwasher
- Washer/dryer prep
- Pull out "Roll Top" dinette with two free standing chairs and two folding chairs
- Residential NuVo H2O whole coach water treatment with water softening system and triple cartridge filters
Options
- 20 cu. ft. 12V refrigerator
- 3rd 15,000 BTU ducted A/C
- 5,500W Onan® Microquiet generator
- 7K hydraulic disc brake package (ABS N/A with disc brakes)
- 8K hydraulic disc brake package (ABS N/A with disc brakes)
- Butler’s pantry (in place of half bath 38FLGS)
- Frameless dual-pane tinted safety-glass windows
- Front wardrobe in place of front windshield and sofa lounge (36SSWS)
- Full body paint- Midnight Gold, Silver Metallic, Midnight Charcoal
- Generator prep
- MORryde independent suspension and shocks with 8K axles and disc brakes (ABS not available)
- Outside Halo griddle for JayPort system or outside kitchens includes LP quick connect (select models)
- Overlander 2 Solar Package: 30-amp controller, (1) 1800W inverter and (2) 200W solar panels
- Overlander 4 Solar Package: (4) 200W solar panels, (2) 100-amp/hour lithium heated batteries, 60-amp controller, 3000W inverter, DC/DC power converter, soft start power save main 15K A/C, soft start power save for bedroom 15K A/C, battery monitor, energy management system, roof pre-wire for additional solar panels, generator prep capable and heavy gauge steel battery enclosure
- Overlander EXT Solar Package: 3,000W inverter/charger with internal 50-amp transfer switch, energy management system, (6) solar panels with 200W each, (6) 100-amp/hour lithium heated batteries, 12V DC A/C in bedroom, DC to DC battery charger, 100-amp MPPT controller management, generator prep capable
- Queen residential foam-top mattress
- Sani-Con® Turbo waste management system
- Slideout awning(s) (quantity varies by model)
- True interior design choice (Modern Farmhouse or Vintage Farmhouse)
- Truma on-demand hot water system
- Wireless backup/side view/front entry door observation kit with 7 in. monitor
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
