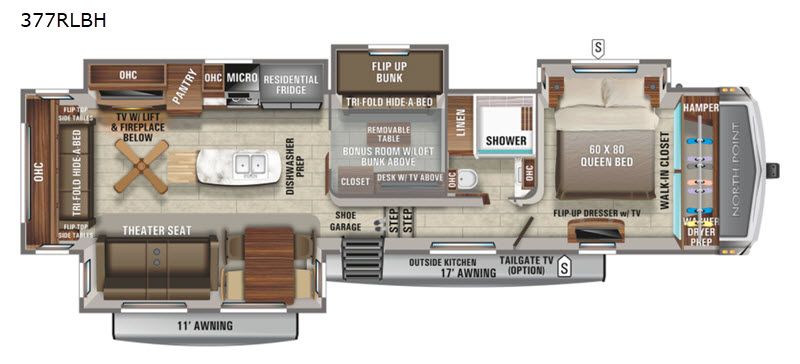

377RLBH Floorplan
Specifications
| Sleeps | 8 | Slides | 4 |
| Length | 42 ft 11 in | Ext Width | 8 ft |
| Ext Height | 13 ft 3 in | Int Height | 8 ft 6 in |
| Interior Color | MODERN FARMHOUSE | Hitch Weight | 3055 lbs |
| GVWR | 16995 lbs | Dry Weight | 14255 lbs |
| Cargo Capacity | 2740 lbs | Fresh Water Capacity | 75 gals |
| Grey Water Capacity | 87 gals | Black Water Capacity | 50 gals |
| Tire Size | 16" | Furnace BTU | 40000 btu |
| Number Of Bunks | 1 | Available Beds | Queen |
| Refrigerator Type | Residential | Refrigerator Size | 21 cu ft |
| Convection Cooking | Yes | Cooktop Burners | 4 |
| Number of Awnings | 2 | LP Tank Capacity | 30 lbs |
| Water Heater Capacity | 10 gal | Water Heater Type | Gas/Electric DSI |
| AC BTU | 30000 btu | TV Info | LR LED HDTV, BR 32" TV |
| Awning Info | 11' and 17' Electric with LED Lights | Axle Count | 2 |
| Washer/Dryer Available | Yes | Number of LP Tanks | 2 |
| Shower Type | Shower w/Seat | VIN | 1UJCD0BV4P1LL0187 |
Description
Jayco North Point fifth wheel 377RLBH highlights:
- Fireplace
- Residential-Style Pantry
- Two Bedrooms
- Kitchen Island
- Two Awnings
- Outside Kitchen
You can bring the whole family with two bedrooms in this fifth wheel! The front private bedroom features a queen bed, a front wall walk-in closet with a hamper and a space prepped to add the optional washer and dryer, and a flip-up dresser with a 32" TV. The second room can be used as a den, an office or a guest room with an overhead loft above a flip-up bunk that has a tri-fold sofa below it, and a desk with a TV. The kitchen is decked out in at-home features like the kitchen island with a double sink and prepped for the optional dishwasher, the large pantry, and a 21 cu. ft. refrigerator to keep your perishables fresh. You can wind down each night by relaxing in the rear living area on either the tri-fold hide-a-bed sofa with flip top side tables to set your drink on or the theater seat which are directly across from the fireplace with a TV on a lift. You can even choose to add the optional tailgate TV next to the outside kitchen with a 17' electric awning with LED lights to keep you protected!
These Jayco North Point fifth wheels offer sleeping spaces and luxurious features to accommodate all types and sizes of groups! You will have generations of family fun with construction features like the Stronghold VBL™ aluminum framed, vacuum bond laminated walls and a Magnum Truss™ XL6™ roof system with a one-piece, seamless DiFlex II material which is the strongest tested roof in the industry. There are three mandatory packages to make your traveling experience even better. One of the packages is a five star handling package which includes Dexter axles with Nev-R-Adjust brakes, Dexter heavy-duty shackles with wet bolt fasteners and bronze bushings to resist the wear and tear of towing, Goodyear beast tires, a MORryde rubberized suspension system, and a MORryde pin box so you can travel forward, backward, and side-to-side for a smoother tow. Come choose your favorite model today!
Features
Standard Features (2023)
Exterior Equipment
- 12 in. structural steel I-beam with 10 in. steel drop frame
- Stronghold VBL™ aluminum framed and vacuum bond laminated gelcoated fiberglass exterior walls (including rear wall and slide room end walls)
- Magnum Truss™ XL6™ Roof System (strongest tested roof in the industry) with one-piece, seamless roof material with a 20 year warranty
- Climate Shield™ zero-degree tested weather protection:
- Fully-enclosed and heated underbelly (ducted)
- 40,000 BTU output furnace
- Double layer fiberglass batt insulation (roof and floor)
- PEX plumbing, 2 in. block foam and reflective foil
- JaySMART™ (Safety Markers And Reverse Travel) LED lighting (patented)
- Painted fiberglass front cap with double clear coat and built-in specialty LED lighting
- Frameless, dark tinted, safety-glass windows
- Custom automotive-grade vinyl exterior graphics package
- Skirt metal enclosed drop frame
- LED exterior lighting package
- Dual 30 lb. propane bottles with auto regulator
- Doorside compartment framed and vented for third propane bottle
- Pass-through storage with Slam-latch™ baggage doors
- Digital TV antenna with Wi-Fi extender
- Exterior marine-grade speakers
- Fully enclosed, universal docking center:
- Selectable water connections
- Quick-connect outside shower
- Black tank flush
- Winterization and sanitation
- Independent satellite wiring
- Whole coach cable hookups
- Water heater bypass
- Battery disconnect
- Under-mounted spare tire
- JayPort system for outside griddle (all floorplans without a standard outside kitchen)
- Built in sewer hose carrier
- 3,000 lb. tow hitch with 4-way pin
- Inverter pre-wire to select outlets
Interior Equipment
- Solid hardwood slide fascia
- Handcrafted hardwood glazed doors and drawers
- 5/8 in. tongue-and-groove joined plywood floor decking
- Vinyl flooring (made in the USA) throughout (includes slide out floors)
- Ceiling fan (select models)
- LED interior lighting throughout
- LED accent lighting above slide outs
- Tri-fold hide-a-bed sofa with residential sleep surface (select models)
- Dual USB charging ports throughout
- “Shoe garage” in hallway step (select models)
- Flip-up tabletop storage next to tri-fold sofa (select models)
- JayVoice voice command system - controls lighting, A/C and furnace
- Soft close, heavy-duty, 75 lb. full-extension, steel ball-bearing drawer guides
- Stainless steel kitchen sink
- Pull-out spice rack above microwave (select models)
- Residential-grade, pull-out kitchen faucet
- Extra 120V power outlets in kitchen and slide rooms
- Flip-up countertop extension with 24 in. x 24 in. butcher block bar top (select models)
- Pull-out utility drawer under kitchen sink
- Toe kick nightlights in bedroom and bathroom
- Residential quilted bedspread and pillows
- Gas-strutted under-bed storage
- C.P.A.P. prepped bedroom (includes 120V outlets and night stands with cup holders)
- Carbon monoxide and LP detector
- Flip-up hidden storage in bedroom chest of drawers (select models)
- Built-in laundry hamper in wardrobe (select models)
- Cup holders in bedroom nightstands
- Bathroom skylight
- LED backlit custom framed mirror and medicine cabinet
- Porcelain toilet with foot flush
- Vessel bowl sink with high rise faucet in main bathroom
Customer Value Packages (Mandatory)
- 15,000 BTU “Whisper Quiet” A/C (main)
- 15,000 BTU “Whisper Quiet” A/C (bedroom)
- Electric patio awning with integrated LED lights
- 16 Gal. Gas/electric DSI water heater
- Custom machined aluminum rims
- Keyed-Alike™ lock system (single key for all doors/locks)
- Rooftop and ground solar prep
- Backup, main entrance door and side observation security camera prep (includes a power switch in the bedroom to use the optional 7 in. monitor for security)
- XL grab handle
- 50 in. 4K Smart LED HDTV with fully digital HDMI® output and two extra HDMI cables
- Home entertainment system with subwoofer
- Hidden hinges on cabinet doors
- Refrigerator temperature sensors linked to JAYCOMMAND®
- Residential king (72 in. x 80 in.) mattress with under-bed storage
- Wireless remote control system (includes Bluetooth® wireless controls) with dimmer switches
5 Star Handling Package (Mandatory)
- 17.5 in. 'H' rated Uniroyal tires
- MORryde® rubber pin box
- Dexter® Axles with Nev-R-Adjust® brakes, E-Z Lube® hubs, and 4,000 lb. leaf springs
- MORryde® CRE-3000™ rubberized suspension
- Wet bolt fasteners and bronze bushings
Luxury Package (Mandatory)
- 6-point hydraulic auto-leveling system
- 2nd electric patio awning with integrated LED lights
- MORryde® StepAbove™ entrance steps with strut assist (main entrance)
- JAYCOMMAND® “Smart RV” system
- Cellular prep for 4G WiFi repeater and JAYCOMMAND® “Smart RV” system
- High gloss gelcoated sidewalls
- Oversized multi-battery compartment (industry leading room for 4-6 batteries)
- Frameless dark tinted safety-glass windows
- Privacy roller shades
- Free-standing (no pedestal) table with leaf and (2) free-standing and (2) folding chairs
- LED fireplace with electric space heater
- Central vacuum system with dust port
- Fresh Water Drinking System (patent-pending) (connects to ice maker)
- 30 in. residential microwave
- 21 cu. ft. residential refrigerator with 1800W inverter
- Residential 24 in. Insignia™ stove (3.73 cu. ft. with 12,000 BTU high output burner)
- Residential solid-surface kitchen countertop with bamboo sink cover and strainer
- Washer/dryer prep
- 32 in. 4K Smart bedroom TV
- Residential walk-in shower with shampoo/soap holder and teak seat
Options
- True interior design choice (Modern Farmhouse or Classic Cottage)
- Customer Value Package: 15,000 BTU central air with heat pump
- Extreme Weather Package: 120V heated holding tank pads and 12V wrapped and heated fresh water line
- Wireless backup/side view/front entry door observation kit with 7 in. monitor
- Queen residential foam top mattress
- 39 in. 4K Smart TV in cargo
- Sani-Con® Turbo waste management system
- Generator prep with 120 lb. max LP system (3) 40 lb. LP bottles
- 5,500W Onan® Microquiet generator
- Frameless dual pane tinted safety-glass windows
- Slideout awning (quantity varies by model)
- 7K hydraulic disc brake package
- 8K hydraulic disc brake package
- 3rd-15,000 BTU ducted A/C
- 18 cu. ft. Norcold® Polar Max gas/electric refrigerator
- Truma on-demand hot water system
- Outside griddle for JayPort system (includes LP quick-connect) (310RLTS, 373BHOK, 380RKGS)
- Overlander 2 Solar Package: (30-amp controller, (1) 800W inverter and (2) 200W solar panels)
- Overlander 4 Solar Package: (4) 200W solar panels, (2) 100-amp/hour lithium heated batteries, 60-amp controller, 3000W inverter, DC/DC power converter, soft start power save main 15K A/C, soft start power save for bedroom 15K A/C, battery monitor, energy management system, roof pre-wire for additional solar panels, generator prep capable and heavy gauge steel battery enclosure
- Overlander EXT Solar Package: 3,000W inverter/charger with internal 50-amp transfer switch, energy management system, (6) solar panels with 200W each, (6) 100-amp/hour lithium heated batteries, 12V DC A/C in bedroom, DC to DC battery charger, 100-amp MPPT controller management, generator prep capable
Please see us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
