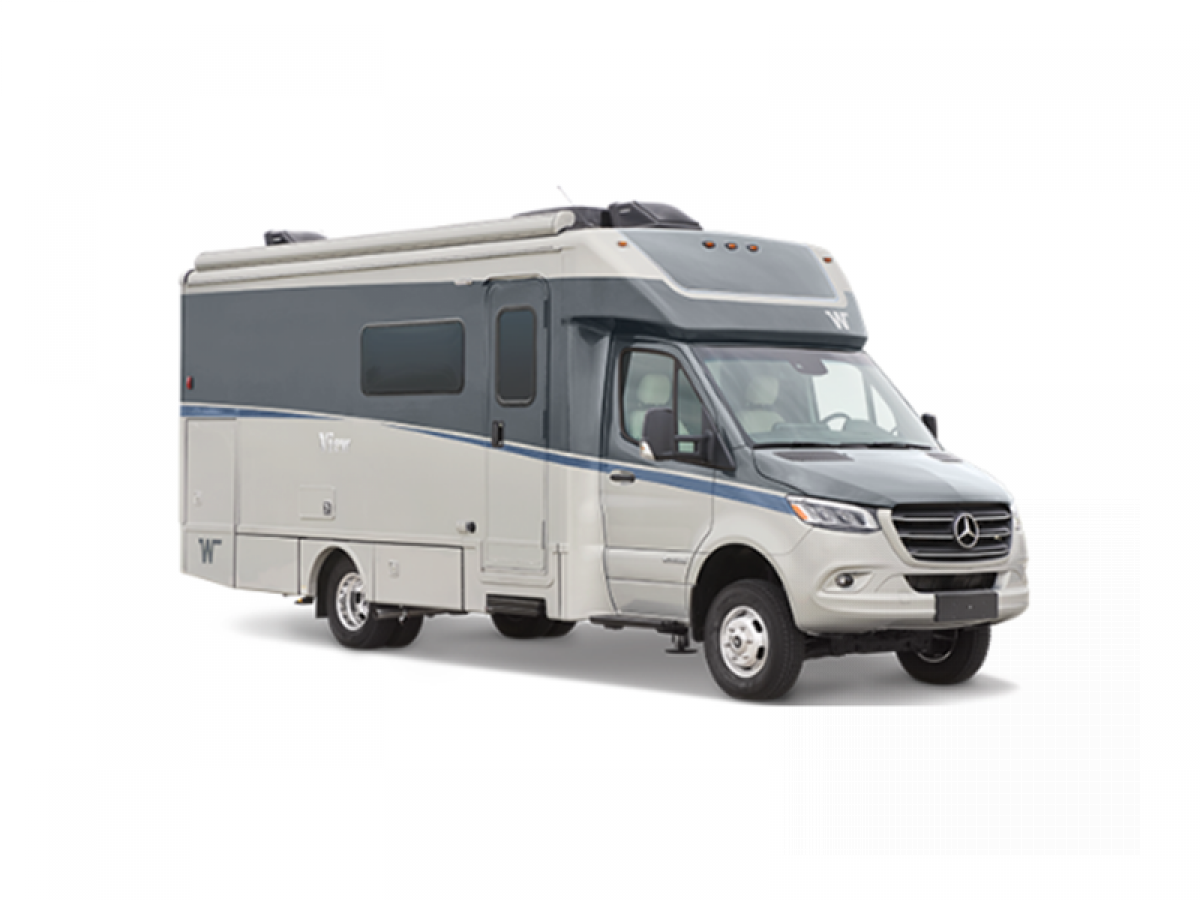

Winnebago View Motor Home Class C

1 of 30

The Winnebago View Class C diesel motorhomes will offer you the ultimate freedom and versatility with industry-leading amenities that will redefine your RV experience.

The Mercedes-Benz RWD sprinter chassis is a name you can trust, and model 24T even has an AWD option for even better handling. The MBUX touchscreen multimedia infotainment system will make the drive easier than ever with features such as intelligent voice control, navigation, and a rear camera. You'll enjoy laminate countertops inside, along with tinted coach windows, an Oxygenics flexible showerhead, and many more comforts.

Let a new View Class C diesel motorhome be your next travel companion!

Floorplans (5)
Features
Manu-Facts

View 24D

Take a Virtual Tour

Winnebago View Class C diesel motorhome 24D highlights: Rear Bath Murphy+ Bed ... more about View 24D

Featured 24D

Specifications

Sleeps	6
Slides	1
Length	25 ft 6 in
Ext Width	7 ft 7 in
Ext Height	11 ft
Int Height	6 ft 8 in
Interior Color	Harmony, Harmonious

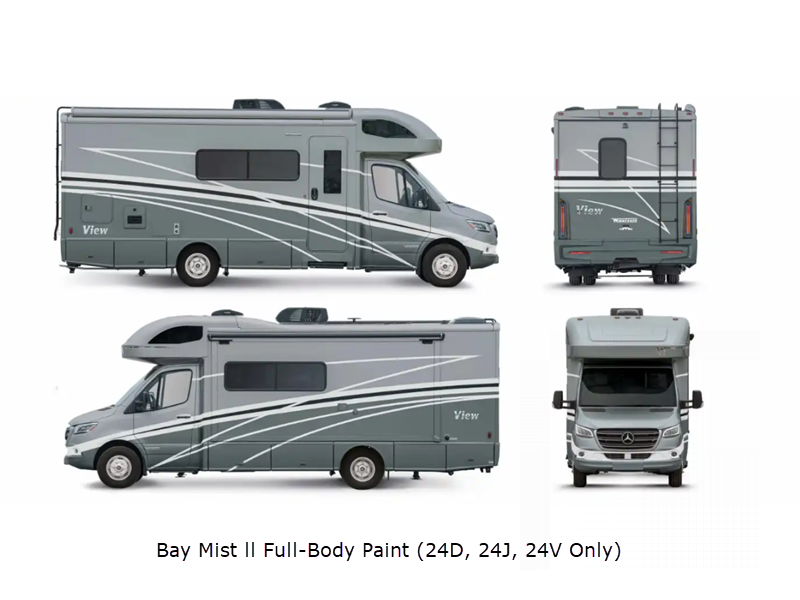

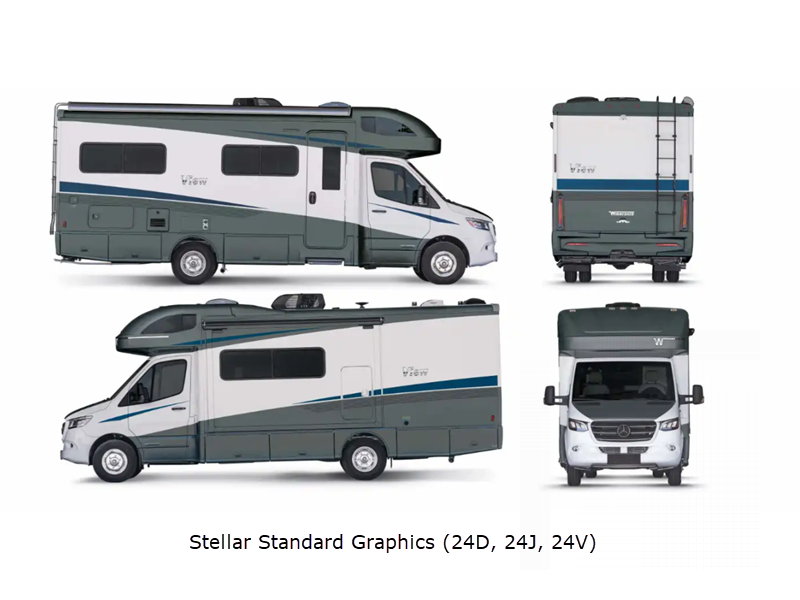

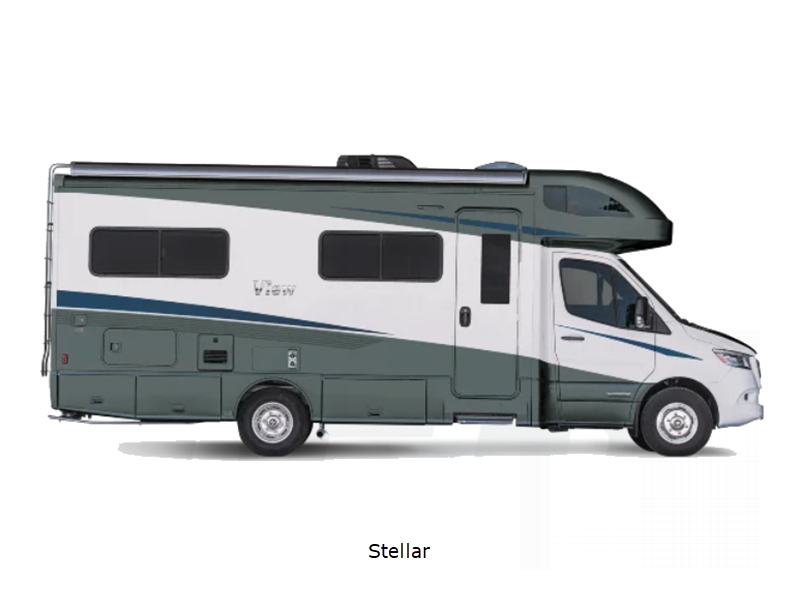

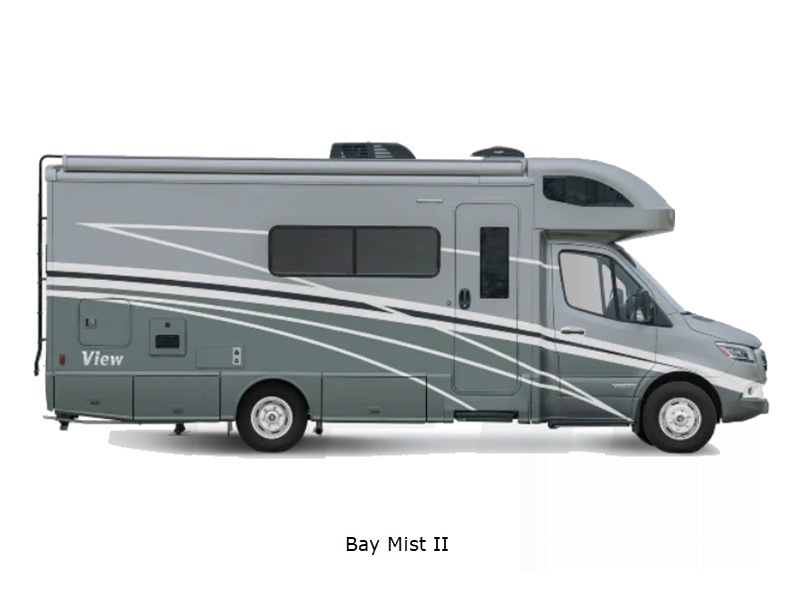

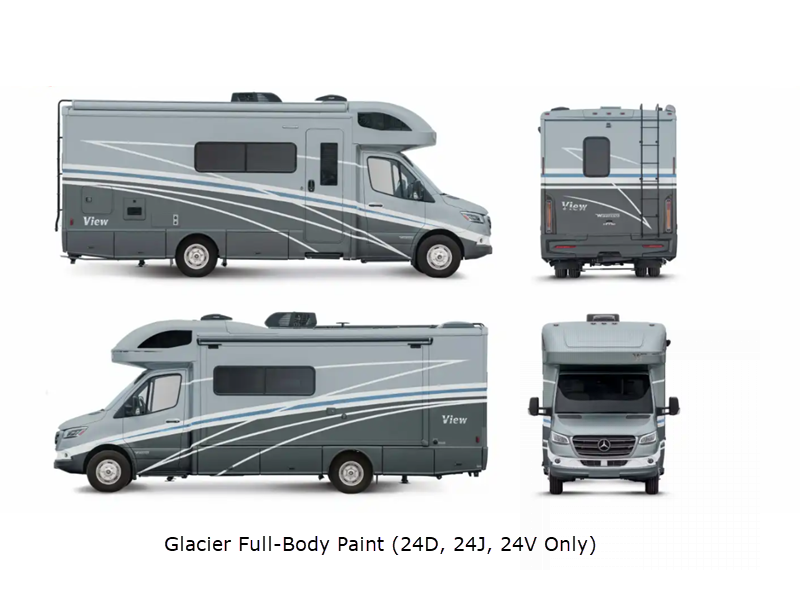

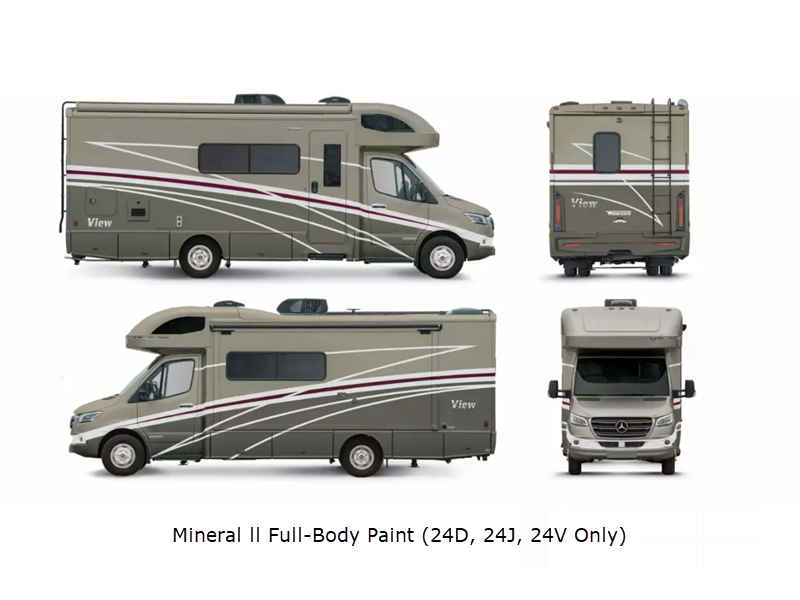

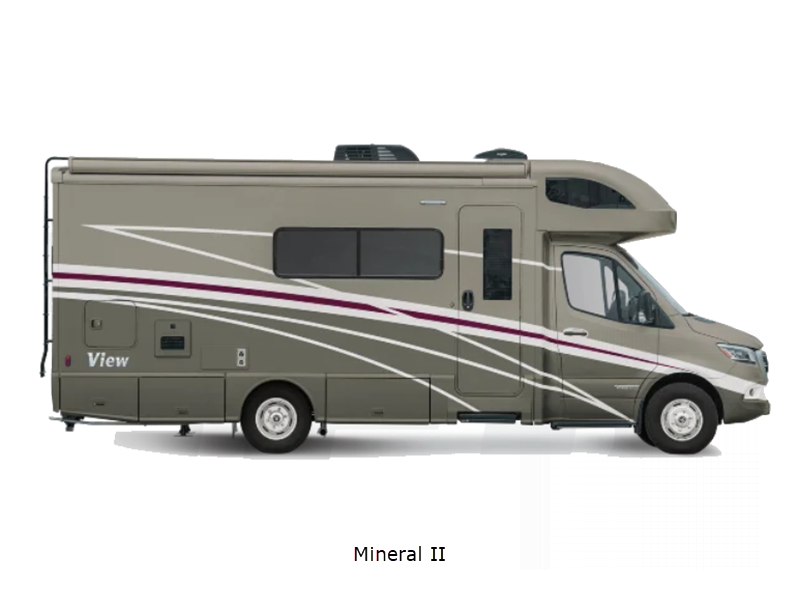

Exterior Color	Stellar Standard Graphics. Bay Mist ll, Glacier, Mineral ll Full-Body Paint
Hitch Weight	5000 lbs
GVWR	11030 lbs
Fresh Water Capacity	30 gals
Grey Water Capacity	41 gals
Black Water Capacity	41 gals
Furnace BTU	20000 btu
Generator	3800W RVMP Flex Power
Fuel Type	Diesel
Engine	2.0L High Output Turbo Diesel 4-Cylinder
Chassis	Mercedes Benz RWD Sprinter
Fuel Capacity	24.5 gals
Wheelbase	170 in
Number Of Bunks	1
Available Beds	Murphy
Refrigerator Type	Two Door Compressor Driven
Refrigerator Size	10 cu ft
Convection Cooking	Yes

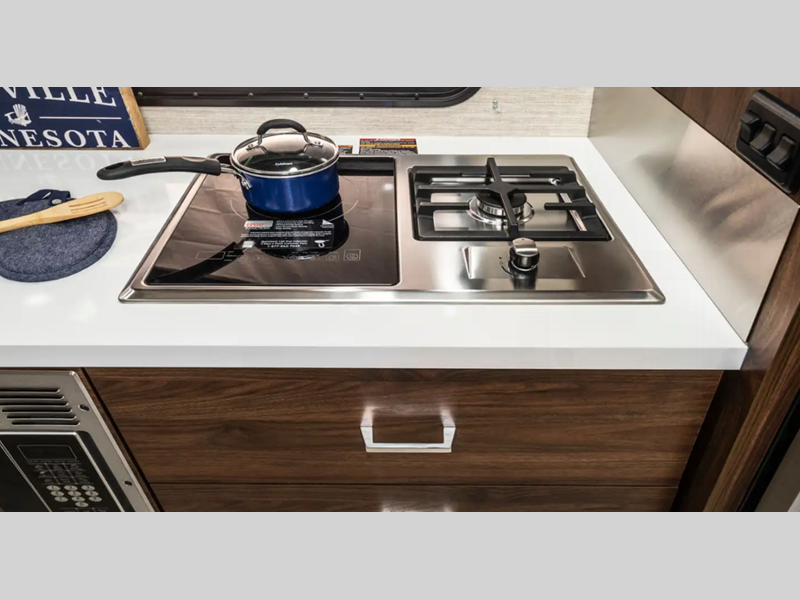

Cooktop Burners	2
Shower Size	24" x 32"
Number of Awnings	1
Axle Weight Front	4410 lbs
Axle Weight Rear	7720 lbs
LP Tank Capacity	50.76 lbs
Water Heater Type	Truma AquaGo Comfort Plus Tankless
AC BTU	15000 btu

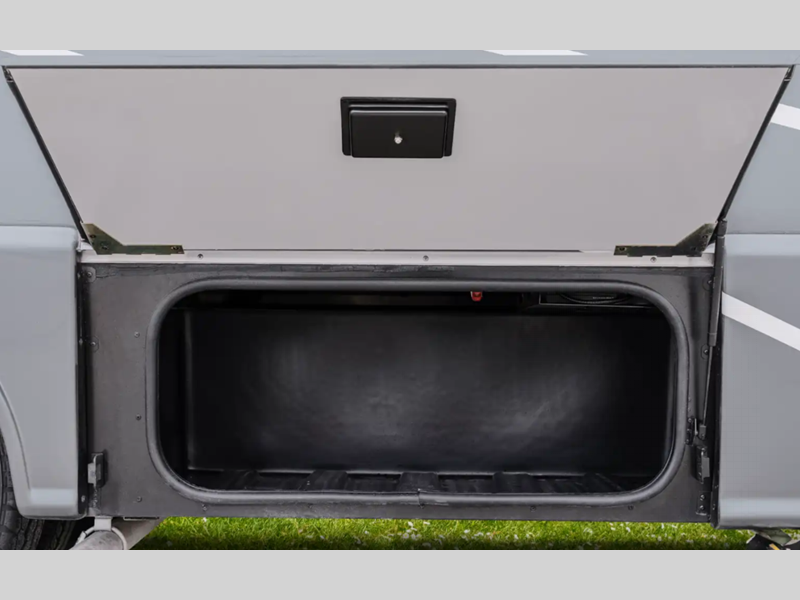

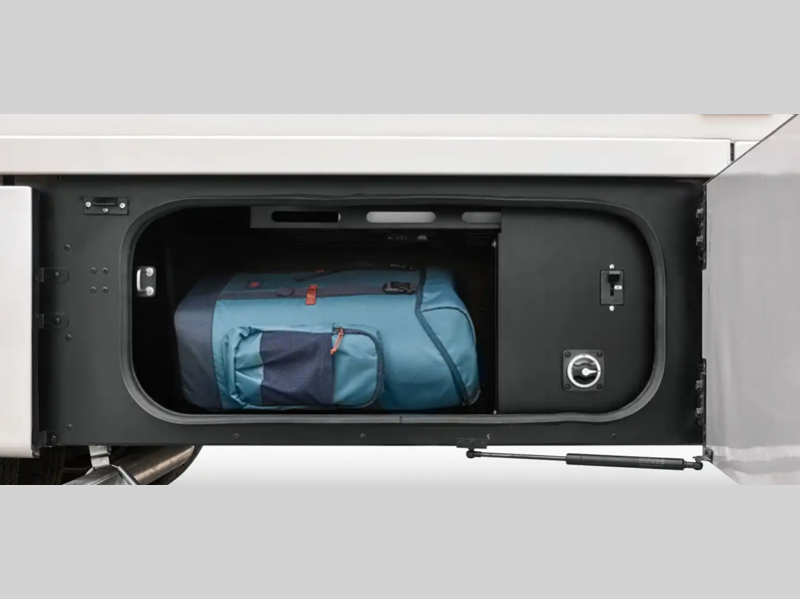

Basement Storage	30 cu. ft.
TV Info	Coach 32" HDTV

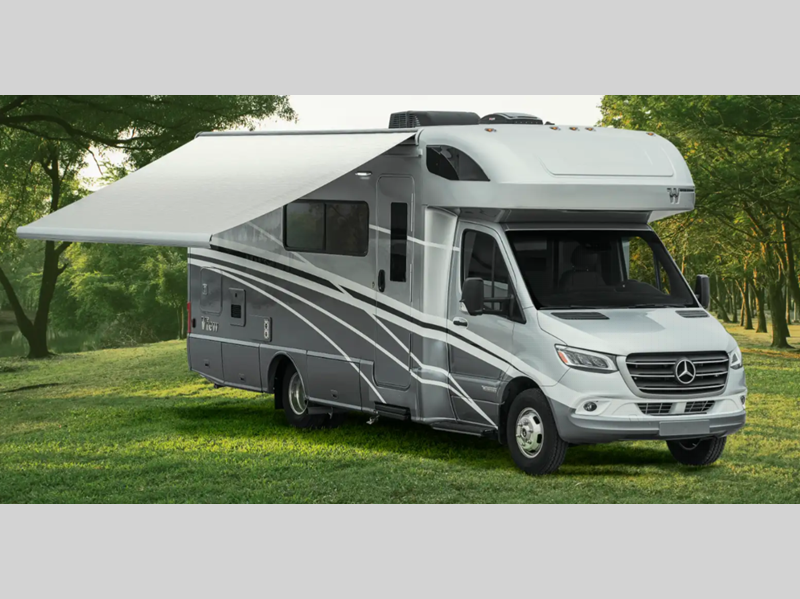

Awning Info	16' Power with LED Lights & Bluetooth Control
Gross Combined Weight	15250 lbs
Shower Type	Standard
Electrical Service	30 amp

Similar Floorplans

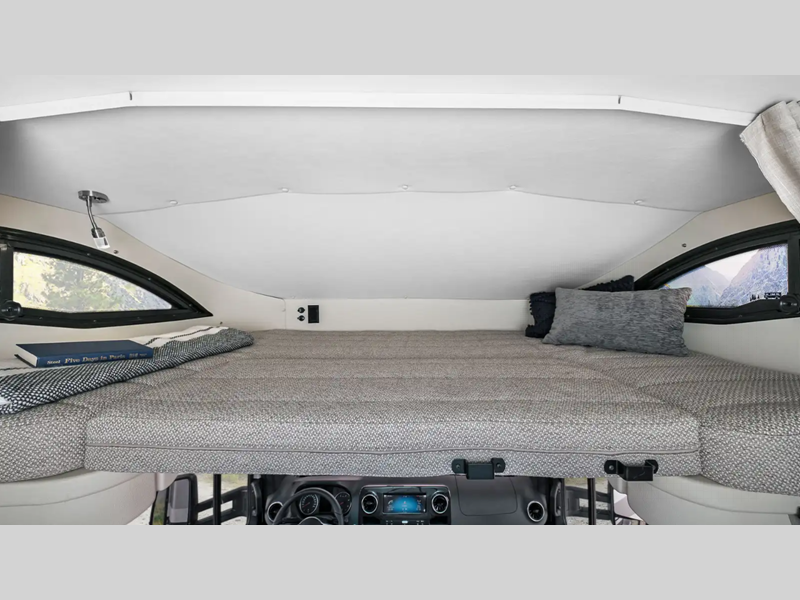

Bunk Over Cab U Shaped Dinette Murphy Bed

View 24J

Take a Virtual Tour

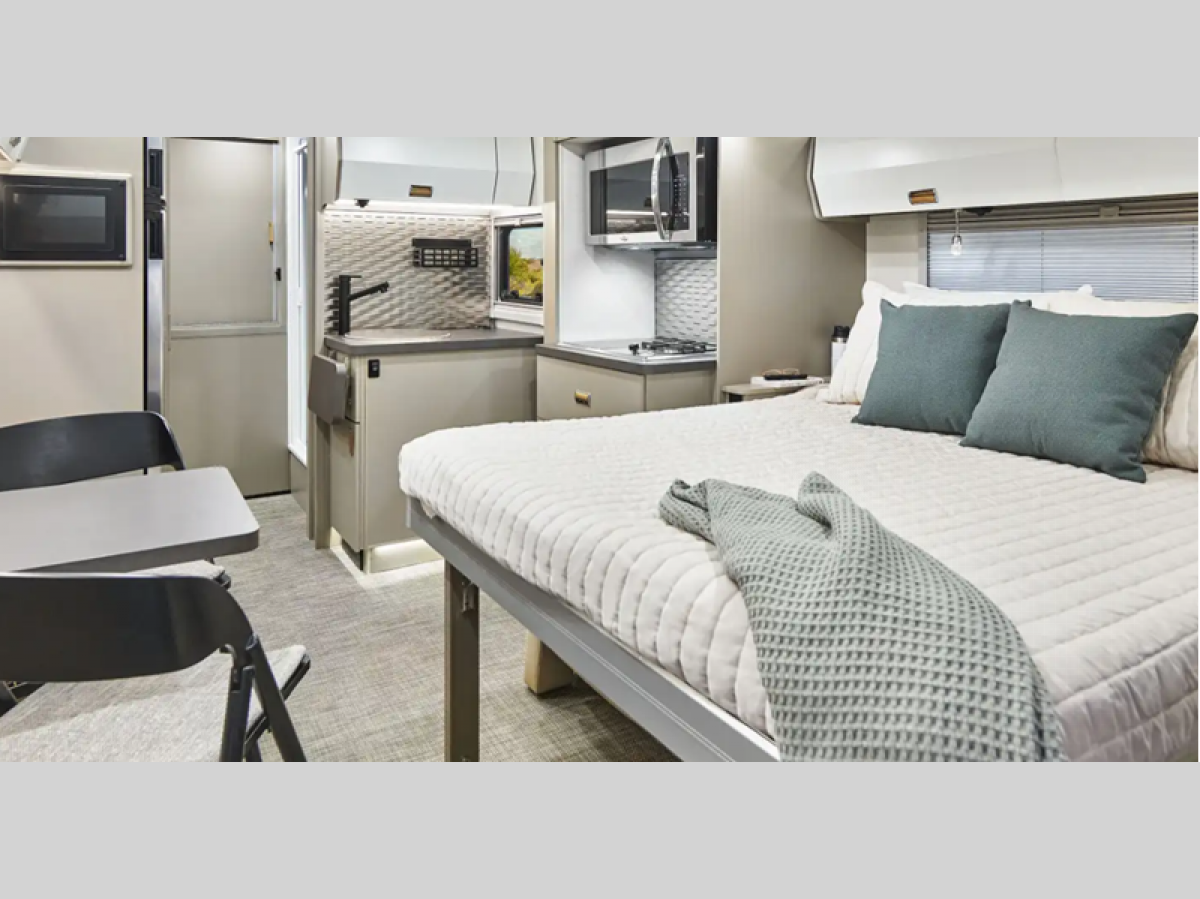

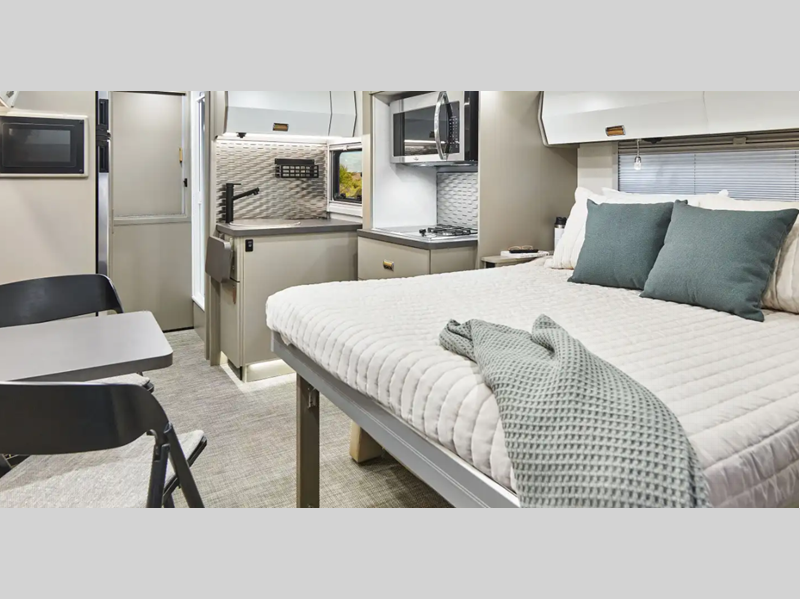

Winnebago View Class C diesel motorhome 24J highlights: 50" x 79" Bed Pantry ... more about View 24J

Featured 24J

Specifications

Sleeps	4
Slides	1
Length	25 ft 6 in
Ext Width	7 ft 7 in
Ext Height	11 ft
Int Height	6 ft 8 in
Interior Color	Harmony, Harmonious
Exterior Color	Stellar Standard Graphics. Bay Mist ll, Glacier, Mineral ll Full-Body Paint
Hitch Weight	5000 lbs
GVWR	11030 lbs
Fresh Water Capacity	37 gals
Grey Water Capacity	41 gals
Black Water Capacity	41 gals
Furnace BTU	20000 btu
Generator	3800W RVMP Flex Power
Fuel Type	Diesel
Engine	2.0L High Output Turbo Diesel 4-Cylinder
Chassis	Mercedes Benz RWD Sprinter
Fuel Capacity	24.5 gals
Wheelbase	170 in
Number Of Bunks	1
Available Beds	Full
Refrigerator Type	Two Door Compressor Driven
Refrigerator Size	10 cu ft
Convection Cooking	Yes
Cooktop Burners	2
Shower Size	24" x 32"
Number of Awnings	1
Axle Weight Front	4410 lbs
Axle Weight Rear	7720 lbs
LP Tank Capacity	50.76 lbs
Water Heater Type	Truma AquaGo Comfort Plus Tankless
AC BTU	15000 btu
Basement Storage	43 cu. ft.
TV Info	Coach 32" HDTV, BR 24" LED HDTV
Awning Info	16' Power with LED Lights & Bluetooth Control
Gross Combined Weight	15250 lbs
Shower Type	Standard
Electrical Service	30 amp

Similar Floorplans

Bunk Over Cab U Shaped Dinette

View 24R

Take a Virtual Tour

Winnebago View Class C diesel motorhome 24R highlights: Rear Twin Beds with King ... more about View 24R

Have a question about this floorplan? Contact Us

Specifications

Sleeps	4
Slides	1
Length	25 ft 8 in
Ext Width	7 ft 7 in
Ext Height	10 ft 7 in
Int Height	6 ft 8 in
Interior Color	Hygge Haus ll, Mod Allure ll

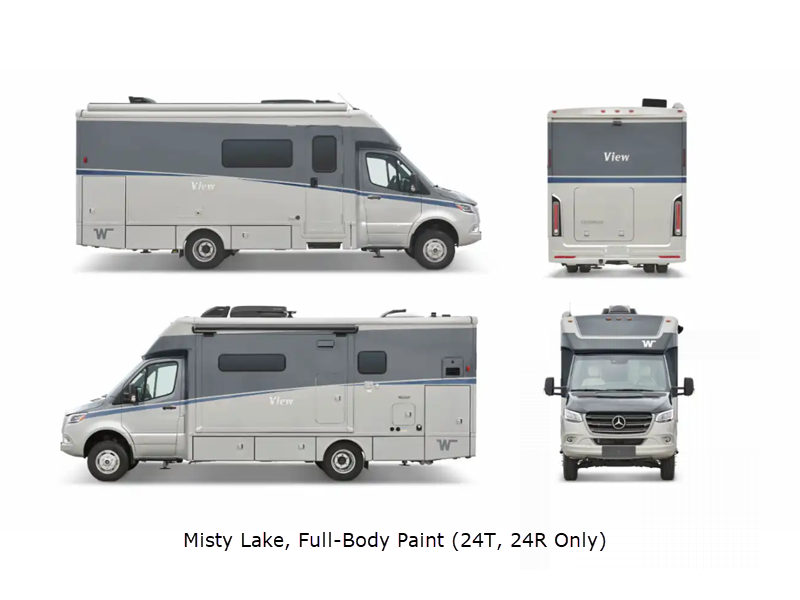

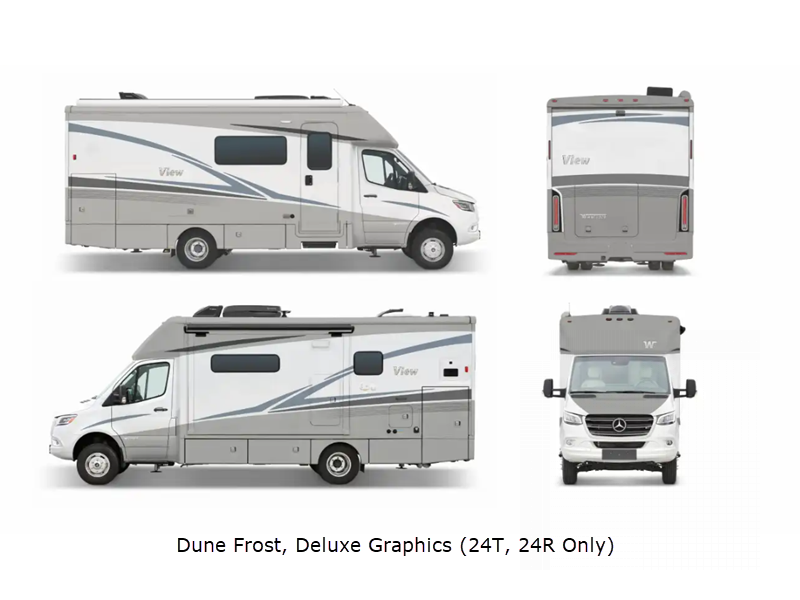

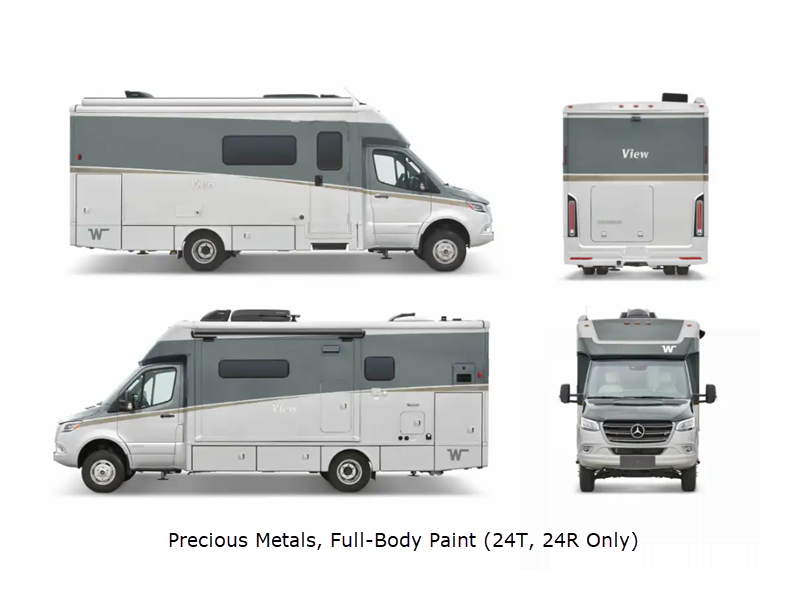

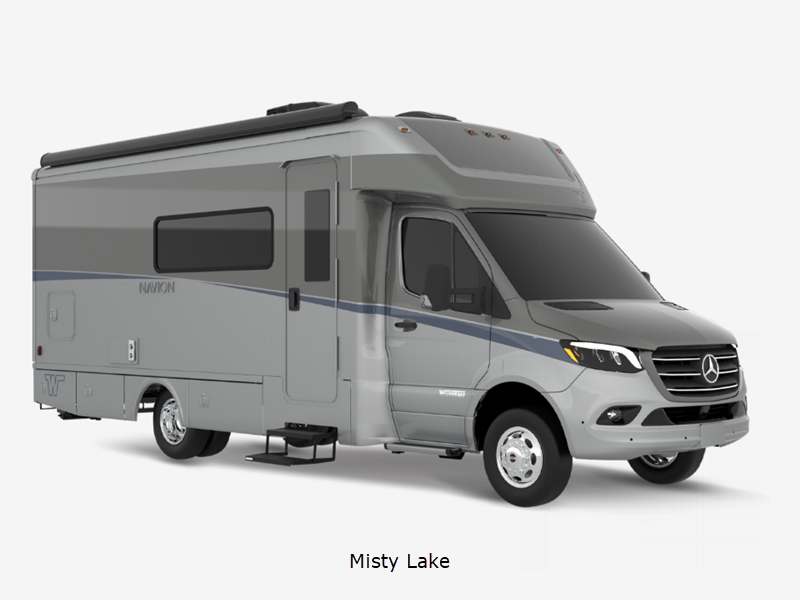

Exterior Color	Dune Frost Deluxe Graphics. Misty Lake, Precious Metals, Smokehouse Full-Body Paint
Hitch Weight	5000 lbs
GVWR	11030 lbs
Fresh Water Capacity	35 gals
Grey Water Capacity	46 gals
Black Water Capacity	47 gals
Furnace BTU	25000 btu
Fuel Type	Diesel
Engine	2.0L High Output Turbo Diesel 4-Cylinder
Chassis	Mercedes-Benz RWD Sprinter
Fuel Capacity	24.5 gals
Wheelbase	170 in
Number Of Bunks	1
Available Beds	Twin Beds with King Conversion
Refrigerator Type	12V Two Door Compressor Driven
Refrigerator Size	10 cu ft
Convection Cooking	Yes
Cooktop Burners	2
Shower Size	25" x 30"
Number of Awnings	1
Axle Weight Front	4410 lbs
Axle Weight Rear	7720 lbs
LP Tank Capacity	50.76
Water Heater Type	Truma AquaGo Comfort Plus Tankless
AC BTU	15000 btu

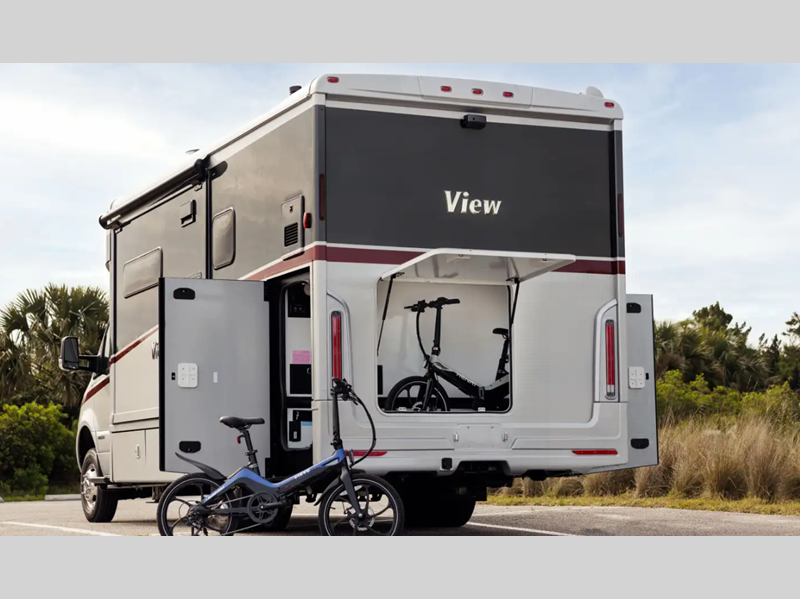

Basement Storage	80.9 cu. ft.
TV Info	32" LED HDTV
Awning Info	16' Power with LED Lights & Bluetooth Control
Gross Combined Weight	15250 lbs
Shower Type	Standard
Electrical Service	30 amp

Similar Floorplans

Bunk Over Cab Rear Twin

View 24T

Take a Virtual Tour

Winnebago View Class C diesel motorhome 24T highlights: Rear Bath Murphy+ Bed ... more about View 24T

Featured 24T

New 2025 View 24T
- Location: Selma, NC
- Stock #: 101218
- MSRP: $270,755.00
- Sale Price $199,989.00

Specifications

Sleeps	3
Slides	1
Length	25 ft 8 in
Ext Width	7 ft 7 in
Ext Height	10 ft 7 in
Int Height	6 ft 8 in
Interior Color	Hygge Haus ll, Mod Allure ll
Exterior Color	Dune Frost Deluxe Graphics. Misty Lake, Precious Metals, Smokehouse Full-Body Paint
Hitch Weight	5000 lbs
GVWR	11030 lbs
Fresh Water Capacity	30 gals
Grey Water Capacity	46 gals
Black Water Capacity	47 gals
Furnace BTU	25000 btu
Fuel Type	Diesel
Engine	2.0L High Output Turbo Diesel 4-Cylinder
Chassis	Mercedes-Benz RWD Sprinter
Fuel Capacity	24.5 gals
Wheelbase	170 in
Number Of Bunks	1
Available Beds	Murphy
Refrigerator Type	12V Two Door Compressor Driven
Refrigerator Size	10 cu ft
Convection Cooking	Yes
Cooktop Burners	2
Shower Size	30" x 34"
Number of Awnings	1
Axle Weight Front	4410 lbs
Axle Weight Rear	7720 lbs
LP Tank Capacity	50.76
Water Heater Type	Truma AquaGo Comfort Plus Tankless
AC BTU	15000 btu
Basement Storage	80.9 cu. ft.
TV Info	32" LED HDTV
Awning Info	16' Power with LED Lights & Bluetooth Control
Gross Combined Weight	15250 lbs
Shower Type	Shower w/Seat
Electrical Service	30 amp

Similar Floorplans

Bunk Over Cab Murphy Bed Rear Bath

View 24V

Winnebago View Class C diesel motorhome 24V highlights: Convertible Twin Beds ... more about View 24V

Featured 24V

Specifications

Sleeps	4
Slides	1
Length	25 ft 6 in
Ext Width	7 ft 7 in
Ext Height	11 ft
Int Height	6 ft 8 in
Interior Color	Harmony, Harmonious
Exterior Color	Stellar Standard Graphics. Bay Mist ll, Glacier, Mineral ll Full-Body Paint
Hitch Weight	5000 lbs
GVWR	11030 lbs
Fresh Water Capacity	31 gals
Grey Water Capacity	41 gals
Black Water Capacity	41 gals
Furnace BTU	20000 btu
Generator	3800W RVMP Flex Power
Fuel Type	Diesel
Engine	2.0L High Output Turbo Diesel 4-Cylinder
Chassis	Mercedes Benz RWD Sprinter
Fuel Capacity	24.5 gals
Wheelbase	170 in
Number Of Bunks	1
Available Beds	Two Twin
Refrigerator Type	Two Door Compressor Driven
Refrigerator Size	10 cu ft
Convection Cooking	Yes
Cooktop Burners	2
Shower Size	19" x 28" x 34"
Number of Awnings	1
Axle Weight Front	4410 lbs
Axle Weight Rear	7720 lbs
LP Tank Capacity	50.76 lbs
Water Heater Type	Truma AquaGo Comfort Plus Tankless
AC BTU	15000 btu
Basement Storage	33.6 cu. ft.
TV Info	Coach 32" HDTV, BR 24" LED HDTV
Awning Info	16' Power with LED Lights & Bluetooth Control
Gross Combined Weight	15250 lbs
Shower Type	Angled
Electrical Service	30 amp

Similar Floorplans

Bunk Over Cab Rear Twin

View Features:

Standard Features (2025)

Chassis

Mercedes-Benz® RWD Sprinter Chassis
2.0L high-output, turbo-diesel 4-cylinder engine, 9-speed automatic transmission with overdrive, 250-amp alternator
LED High Performance headlamps (24T Only)
Adaptive ESP technology
Hydraulic brakes w/ABS (N/A 24T)
Trailer Hitch: 5,000-lb. drawbar/500-lb. maximum vertical tongue weight w/7-pin connector
Stylized aluminum wheels
Hydraulic leveling jack w/automatic controls (front and rear) (24T Only)

Optional Equipment

Hydraulic leveling jacks w/automatic controls (front and rear) (24D, 24J, 24V)
Mercedes-Benz® AWD Sprinter Chassis 2.0L high-output, turbo-diesel 4-cylinder engine, 9-speed automatic transmission with overdrive, 250-amp. alternator (requires Low Profile Front Cap) (24T Only)

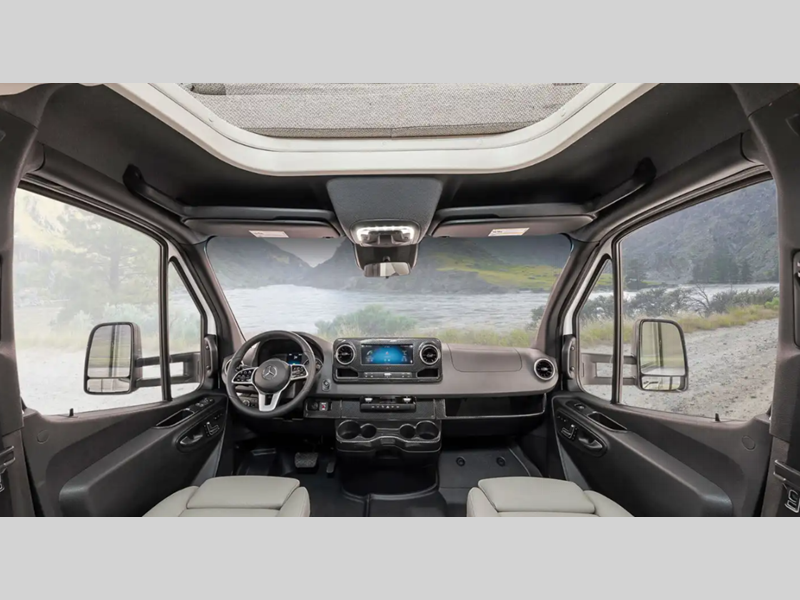

Cab Conveniences (24D, 24J, 24V Only)

MBUX® Touchscreen Multimedia Infotainment Center with Navigation, WiFi hotspot, Intelligent Voice Control and Rear Color Camera
Airbags driver, passenger, side and curtain
Heated power control cab seats — armrest, adjustable lumbar support, headrest, recline, slide, and manual swivel
3-point seat belts
Climate control
Leather-wrapped steering wheel
Power door locks w/remote
Power windows
Power mirrors w/defrost and turn signals
Cruise control
Active lane keeping assist
Active braking assist
Rain sensor w/integrated wet wiper system
Power assist steering w/tilt wheel
12V/USB powerpoints
Folding windshield and cab window blinds
Dash appliqué package
2 cab seat lounge cushions
Hill start assist
Crosswind assist
Attention assist

Cab Conveniences (24T Only)

MBUX® touchscreen multimedia infotainment system with navigation, satellite radio, Wi-Fi hotspot, intelligent voice control, SiriusXM®, Apple CarPlay®, Android Auto™, Bluetooth®, and rear camera
Mercedes me connect vehicle app
Heated power control cab seats, memory control, armrest, adjustable lumbar support, headrest, recline, slide, and manual swivel
3-point seat belts
Airbags driver, passenger, side, and curtain
Power assist steering w/tilt wheel
Digital rearview mirror
Blind spot monitoring system (late availability)
Active brake assist
Lane keeping assist
Attention assist
Hill start assist
Crosswind assist
Rain sensor w/integrated wet wiper system
DISTRONIC PLUS® (adaptive cruise control)
Power mirrors w/defrost and turn signals
Auto headlamps w/high beam assist
Automatic climate control
Power door locks w/remote
Power windows
Dash charging station w/wireless charging, 12-volt, and USB powerpoints
Dash appliqué package
Sunvisors
Thermal cab windows and windshield blinds
Leather-wrapped steering wheel
2 cab seat lounge cushions

Optional Equipment

Cab seats w/Ultrafabrics® UF Select covering

Electrical System (24D, 24J, 24V Only)

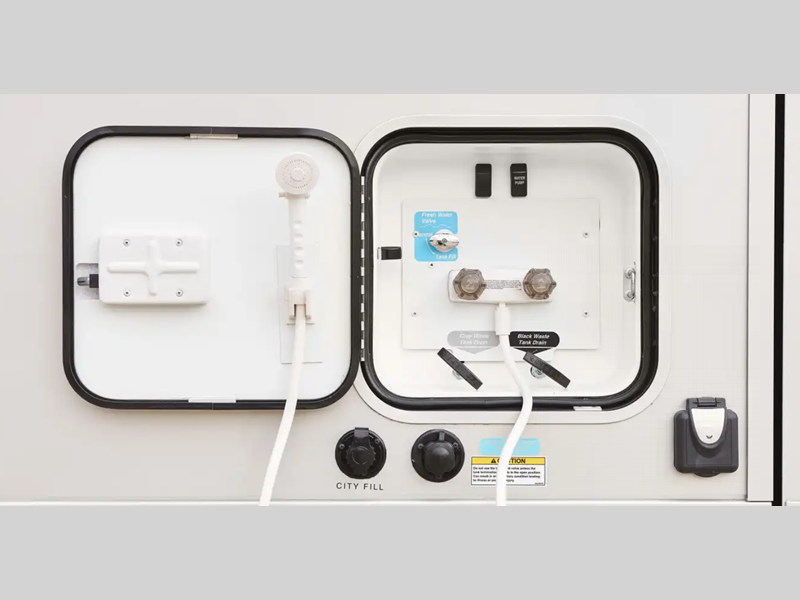

Service Center light, cable TV input, 30-amp. power cord, portable satellite dish hookup, QuickPort® service connection hatch
Automatic dual battery charge control
Exterior AC duplex
Exterior antenna jack
Generator auto transfer switch
Battery disconnect system (coach)
AC/DC load center/converter unit
2 deep-cycle, Group 31 RV batteries
3800W RVMP Flex Power Generator
2,000-watt pure sine wave DC/AC inverter
(2) 100-watt solar panel/battery charger w/controller, junction box, and plug for additional portable solar panel

Optional Equipment (24D, 24J, 24V Only)

Lithium Ion Smart Batteries

Electrical (24T Only)

(1) 320-amp-hour 12V Lithionics® lithium battery w/Bluetooth control package and battery pack heating system
Coach battery disconnect system
AC/DC load center/converter unit
Dedicated 280-amp. second alternator to charge coach batteries
Exterior AC duplex receptacle
Exterior TV jack
30-amp. power cord
Service Center w/light, cable TV input, 30-amp. power cord, portable satellite dish hookup, QuickPort® service connection hatch
(2) 120-watt flexible surface solar panel/battery charger controller, junction box, and plug for additional portable solar panel
2,000-watt pure sine wave DC/AC inverter
WiFi router

Optional Equipment (24T Only)

RVMP® 3800W LP generator w/auto transfer switch and auto start system (N/A w/Generator Replacement Package)
Generator Replacement Package includes 960-amp-hour 12V Lithionics® lithium battery pack w/Bluetooth® control package, battery pack heating system, and (4) 120-watt solar panels (N/A w/LP generator)

Interior (24D, 24J, 24V Only)

32" HDTV
U-Shaped dinette (24D, 24J)
TrueComfort+ sofa w/table (24V)
LED lights
Satellite system ready
Amplified digital HDTV antenna
Powered roof vent — rain cover, electric lift, remote control, thermostat operation (front bunk)
MCD solar/blackout roller shades
Systems monitor panel
Tinted coach windows
Assist bar
Vinyl flooring throughout
Soft vinyl ceiling
110V/12V/USB charging stations
Roof wiring access port
Toe kick lighting

Optional Equipment (24D, 24J, 24V Only)

Dual pane acrylic windows
Dual recliners w/table (24V)
Theater seating w/swivel tables (24D, 24J)
Entertainment System Blu-ray disc player and Bluetooth® Soundbar

Interior (24T Only)

Dimmable LED ceiling lights
Blackout roller shades (lounge & dining)
Tinted coach windows
Winnebago Connect™ 10" touchscreen w/available companion mobile app
Powered roof vent w/rain cover, electric lift, remote control, thermostat operation (front bunk/lounge)
Fold down dining table and chairs
Power reclining theater seating w/fold down center armest w/2 cupholders, USB charging outlets, and removable swive lap tables
Cabover bunk 49" x 75" (N/A w/ Low Profile Front Cap)
32" LED HDTV
JBL Bluetooth® soundbar
Satellite system ready
Amplified digital TV antenna
Roof wiring access port
120V, 12V, USB-A, USB-C charging ports throughout
Assist bar
Woven vinyl flooring throughout
Soft vinyl ceiling
Dimmable overhead accent LED lighting
Dimmable toe kick accent LED lighting

Optional Equipment (24T Only)

Dual-pane euro acrylic windows w/screen and cassette shade
Low Profile Front Cap with lighted storage

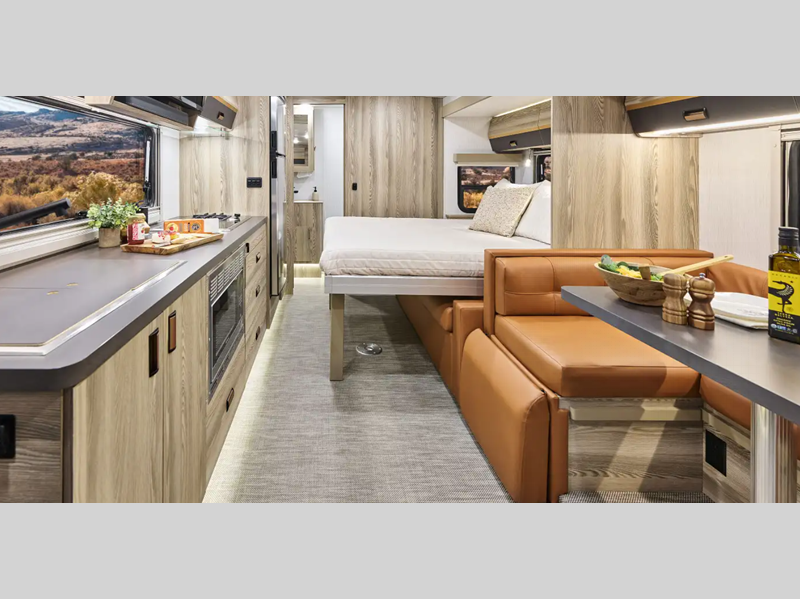

Galley (24D, 24J, 24V Only)

Laminate countertops
Microwave/convection oven w/touch control
2-burner induction & LP range cooktop
10.0 cu. ft. (12V) 2-door compressor-driven refrigerator/freezer
Cold water filtration system
Water-pump switch w/light
Pantry (24D, 24J)
Cabinets with accent lighting
Lighted soft close drawers
Integrated paper towel holder
Double stainless steel sink w/two sink covers
Mini blinds
Toe kick lighting

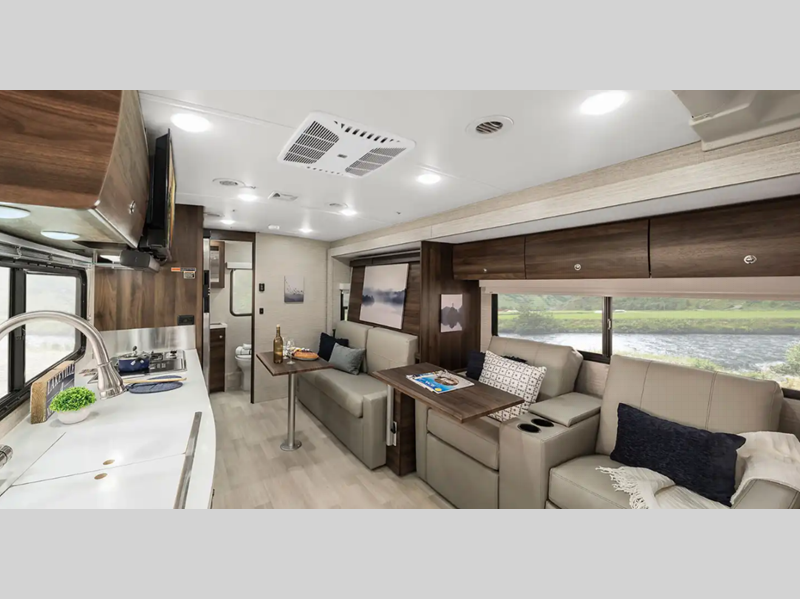

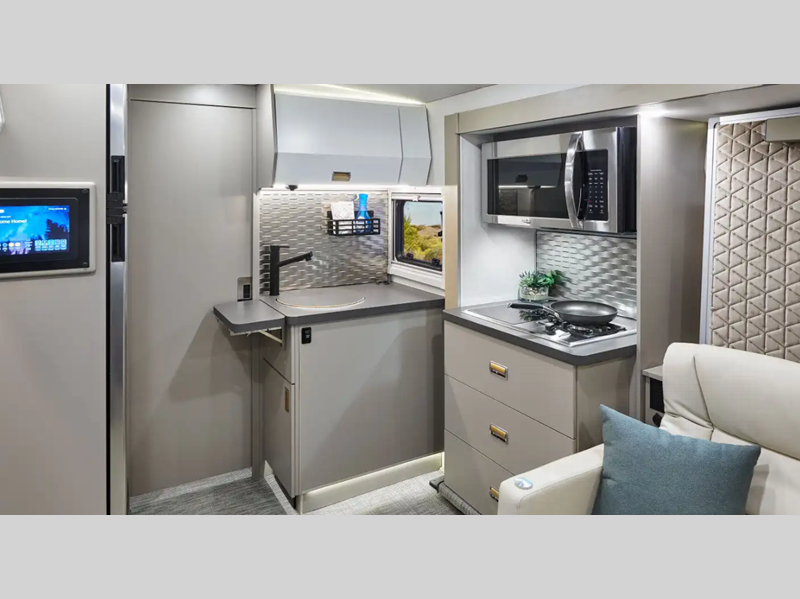

Galley (24T Only)

Laminate countertops
2-burner induction & LP range cooktop
1.6 cu ft OTR microwave/convection oven w/touch control
10.0 cu. ft. (12V) 2-door compressor-driven refrigerator/freezer
Single stainless sink w/cover
Single control faucet w/sprayer
Pantry
Flip-up countertop extension
Pop-up outlet w/(2) 120V & (2) USB-A ports
Cold water filtration system
Water-pump switch
Mini blinds
Overhead cabinets w/dimmable LED accent lighting
Lighted soft-close drawers
Dimmable toe kick accent LED lighting

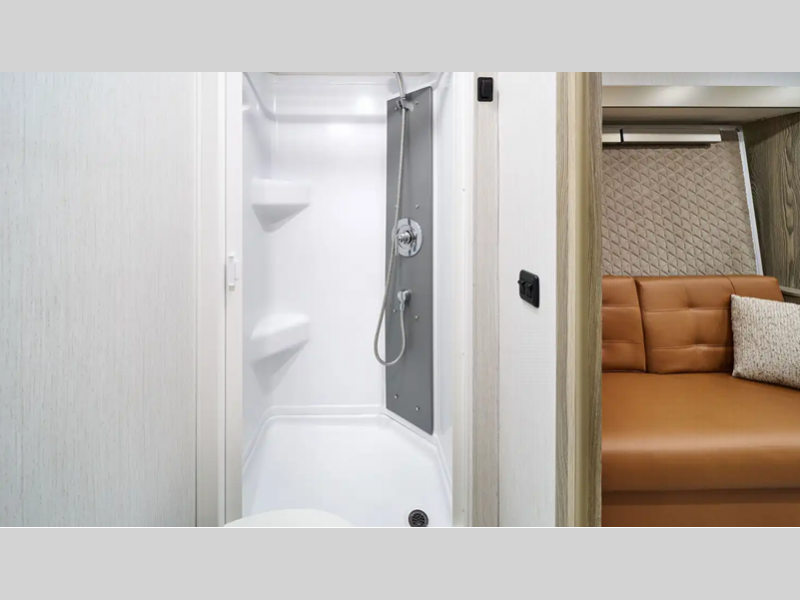

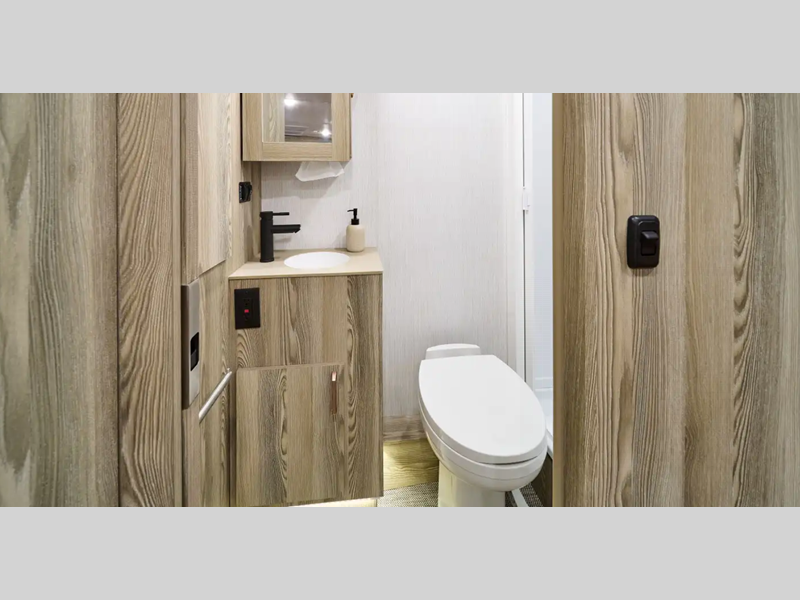

Bath (24D, 24J, 24V Only)

Shower 24" x 32" (24D, 24J)
Shower 19" x 28" x 34" (24V)
Retractable, self-cleaning shower screen
Oxygenics® flexible showerhead
Shower skylight
Porcelain toilet w/foot pedal and sprayer (24J, 24V)
Composite Toilet (24D)
Powered roof vent w/rain cover
Lavatory cabinet
Medicine cabinet
Mini blinds (24D)
Towel rack (24V)
Towel bar(s) (24J, 24V)
Tissue holder
Removable clothes rod
Robe hook(s)
Integrated facial tissue holder
Toe kick lighting

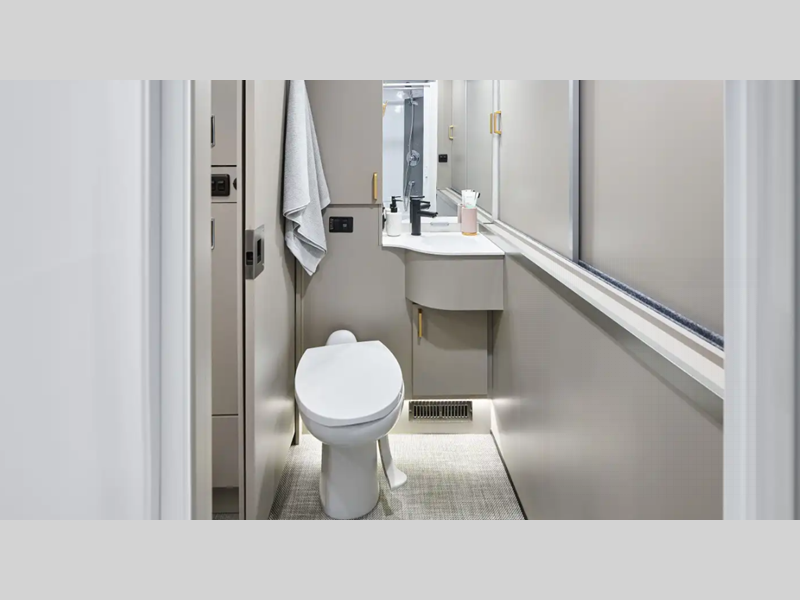

Bath (24T Only)

30" x 34" shower w/built-in seat
Retractable, self-cleaning shower screen
Hand held flexible showerhead
Shower skylight
Porcelain toilet w/foot pedal
Full width wardrobe cabinet w/sliding doors, 2 drawers, and 3 shelves
Metal clothes rod in wardrobe
Removable clothes rod in shower
Powered roof vent w/rain cover
Lavatory cabinet
Tissue holder
Lightweight solid surface countertop w/integrated round sink
Linen cabinet w/adjustable shelves
Robe hook(s)
Dimmable toe kick accent LED lighting

Bedroom (24D, 24J, 24V Only)

Murphy+ bed w/deluxe queen mattress, Euro-suspension system, gel foam topper (24D)
Corner bed w/headboard, foam mattress, mattress cover and access to storage below (24J)
Flex Bed System twin beds/king bed w/foam mattresses and access to storage below (24V)
FROLI® deluxe sleeping system (24J, 24V)
MCD blackout roller shades
Wardrobe cabinet
Metal clothes rod
Room divider curtain
Anything Keeper drop down storage above bed (24J, 24V)
110V/12V/USB charging stations (24J, 24V)
110V/USB charging station (24D)
24" LED HDTV (24J, 24V)

Bedroom (24T Only)

60" x 75" Murphy+ queen bed w/WinnSleep® System
110V/12V/USB-A/USB-C charging ports
Reading lights

Exterior

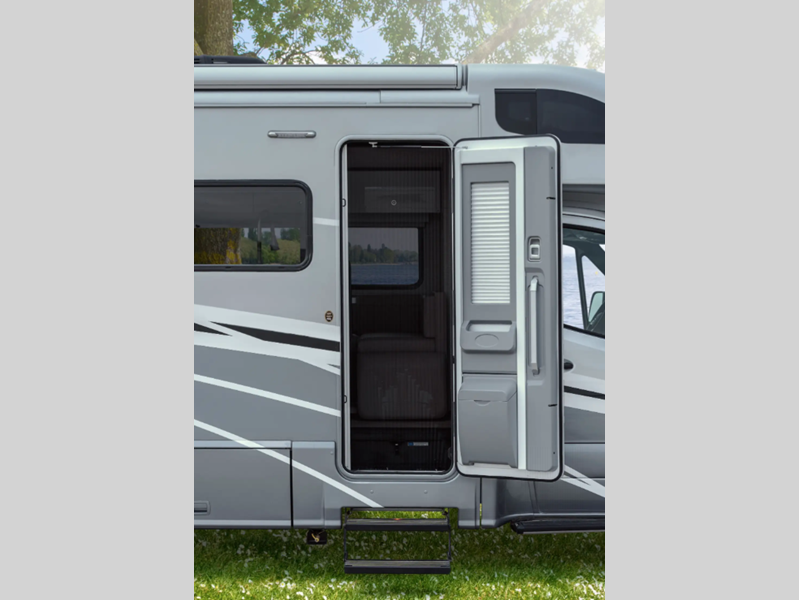

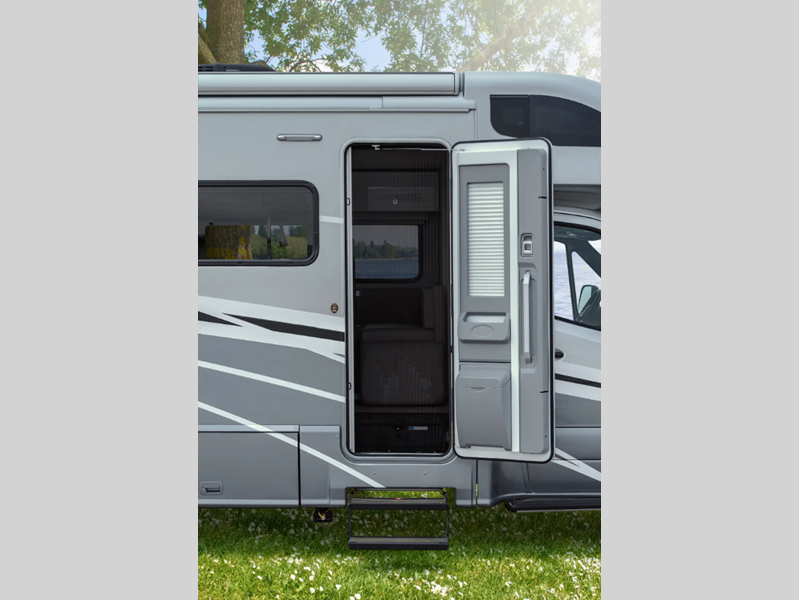

Automatic entrance door step
LED porch light w/interior switch
Stepwell light w/interior switch
Heated gear garage w/L-track cargo tie down system, 110V/12V charging ports, and LED lighting (24T Only)
Front and rear mud flaps
Aluminum cab steps w/logoed tread and loop attachment
Powered patio awning w/LED lights and Bluetooth® control
Large pass-through storage compartment (24D, 24J)
Ladder (N/A 24T)

Heating & Cooling System

15,000 BTU air conditioner w/heat pump
20,000 BTU low-profile ducted furnace (24D, 24J, 24V)
25,000 BTU low-profile ducted furnace (24T)

Plumbing System (24D, 24J, 24V Only)

Service Center — color-coded labels, pressurized city water hookup/tank diverter valve, drainage valves, exterior wash station w/lighted pump switch
Truma AquaGo® Comfort Plus Tankless water heater
TrueLevel™ holding tank monitoring system
Heated drainage system
10' sewer hose
Winterization Package water heater bypass valve and siphon tube
On-demand water pump
Lockable water tank fill
Sewage pump macerator (24V)
Permanent-mount LP tank w/gauge
LPG accessory connection (patio area)
Black holding tank flushing system

Plumbing System (24T Only)

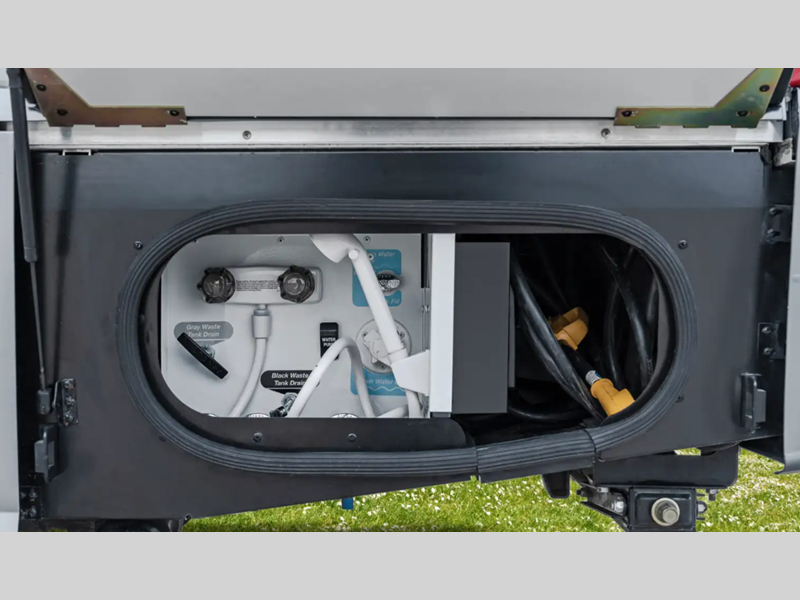

Insulated water service center houses color-coded labels, pressurized city water hookup/tank diverter valve, drainage valves, exterior wash station w/lighted pump switch
Truma AquaGo® Comfort Plus tankless water heater w/ recirculation pump
12V heated drainage system
10' sewer hose
Winterization Package water heater bypass valve and siphon tube
On-demand water pump
Lockable water tank fill
Permanent-mount LP tank w/gauge
LPG accessory connection (patio area)
Black holding tank flushing system

Safety

LPG leak, smoke and carbon monoxide detectors
Fire extinguisher
Ground fault interrupter
Child seat tether anchor (24D, 24J)

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Manu-Facts:

Who We Are:

Winnebago Industries, Inc. is a leading U.S. manufacturer of outdoor lifestyle experiences under the Winnebago, Grand Design, Chris-Craft and Newmar brands. The Company builds quality motorhomes, travel trailers, fifth wheel products and boats with multiple facilities in Iowa, Indiana, Minnesota and Florida. Our common stock is listed on the New York Stock Exchange and is traded under the symbol WGO. Winnebago Industries was incorporated under the laws of the state of Iowa on February 12, 1958, and adopted its present name on February 28, 1961.

Our Values represent our deepest beliefs and direct our actions at work every day. Our Guiding Principles ensure we lean forward and create lifelong advocates across our family of brands.

We respect our roots and legacy of success; we do not rest on them. We work to understand our customers’ unmet needs and develop an experience that creates lifelong advocates. Our employees are driven and caring. We strive to develop the best talent possible and enable a culture of servant leadership. We embrace thoughtful change in order to deliver market leadership as well as superior profitability.

We will work strategically with our channel partners to help them succeed. We will continue to build respected brands that will be among our greatest assets. In every part of our company, we relentlessly pursue continuous improvement and enhanced productivity, driving out waste, and creating meaningful strategic differentiation.

Winnebago View Motor Home Class C - Diesel RVs For Sale
